The Basics of Investment Casting: A Comprehensive Introduction

Investment casting, also known as lost-wax casting, is an ancient and highly effective manufacturing process used to produce metal parts with complex shapes and precise details. The technique has evolved over centuries, gaining popularity in a variety of industries, from aerospace and automotive to medical devices and art. Today, investment casting is considered one of the most reliable and efficient methods for creating intricate metal components.

In this article, we will delve into the basics of investment casting, exploring the process step by step, its applications, benefits, and challenges. By the end of this article, you'll have a solid understanding of how investment casting works and why it is so widely used in modern manufacturing.

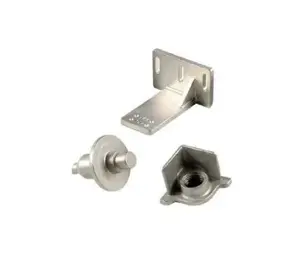

What is Investment Casting?

Investment casting is a process in which a metal component is created by first making a wax model, coating it with a ceramic shell, and then melting the wax away to leave behind a hollow mold. This mold is then filled with molten metal to form the desired part. The key feature of investment casting is its ability to produce parts with complex geometries and fine details, making it an ideal choice for industries that require high precision.

The process is called "lost-wax" casting because the wax model is lost during the process when it is melted out of the ceramic shell. The mold, however, remains intact, and it is used to create the final metal part.

Step-by-Step Process of Investment Casting

The investment casting process involves several detailed steps, each of which plays a crucial role in ensuring the quality of the final product.

Creating the Wax Model: The first step in investment casting is creating a detailed wax model of the desired part. This model can be made through injection molding or handcrafting, depending on the complexity and size of the component. The wax used in this step is highly precise and can replicate intricate features with exceptional accuracy. In some cases, the wax model is produced in multiple pieces that will later be assembled into the final design.

Assembling the Wax Models: After creating the individual wax models, they are assembled onto a central gating system, which is a network of wax channels designed to allow molten metal to flow into the mold. This assembly of wax patterns is called the "tree," and it is an essential part of the process. The tree allows multiple components to be cast in one go, increasing efficiency and reducing costs in high-volume production.

Coating the Wax Model: Once the wax models are assembled into a tree, the next step is to coat them with a ceramic shell. The tree is dipped into a fine slurry made from a mixture of water, fine silica sand, and a binder material. After each dip, the coating is allowed to dry and harden. The process is repeated several times, with each layer adding thickness and strength to the shell. The number of layers can vary, but typically, investment casting involves several coats to ensure the mold is durable and resistant to the high temperatures of molten metal.

Drying and Hardening: After the final coat of ceramic slurry has dried, the shell is left to harden. This process can take several hours or even days, depending on the size and complexity of the cast. Once hardened, the shell is robust enough to withstand the heat and pressure of the molten metal that will be poured into it.

Removing the Wax: The next step is to remove the wax from the ceramic shell. This is typically done by placing the shell in an autoclave, a high-temperature oven that melts the wax away. The shell is heated to a temperature where the wax turns into a liquid and drains out. This step is crucial because it leaves behind a hollow cavity in the shell, which will later be filled with molten metal. The wax can be recycled and reused in future casting projects.

Firing the Shell: After the wax is removed, the ceramic shell is placed in a high-temperature furnace to further harden and strengthen it. This firing process also ensures that any remaining moisture or impurities in the shell are removed. The shell is then ready to be filled with molten metal.

Pouring the Metal: Once the shell is properly prepared, it is heated to the desired temperature, and molten metal is poured into the mold. The type of metal used will depend on the specific requirements of the component, such as its strength, corrosion resistance, and thermal conductivity. Common metals used in investment casting include stainless steel, aluminum, brass, and titanium, among others.

The molten metal flows into the mold, filling the cavity left by the wax model. The metal is allowed to cool and solidify, taking the shape of the original wax pattern. This process can take several hours depending on the size of the part and the material being cast.

Breaking the Shell: After the metal has cooled and solidified, the ceramic shell is broken away. This is typically done using mechanical methods, such as vibrating or hammering, to remove the hard outer shell. Once the shell is removed, the cast metal part is revealed.

Finishing the Part: After the shell is removed, the casting will often require some finishing work. This can include removing any excess metal (called "flash") left from the pouring process, grinding, polishing, and sometimes heat treatment to achieve the desired mechanical properties. Depending on the application, additional steps such as coating or painting may be applied.

Advantages of Investment Casting

Investment casting offers several advantages over other metal-forming techniques. Some of the key benefits include:

Precision and Detail: Investment casting can produce parts with complex geometries and fine details that are difficult or impossible to achieve with other methods, such as sand casting or die casting. It can produce thin walls, sharp edges, and fine features with high precision.

Wide Material Selection: A wide range of metals can be used in investment casting, including alloys of steel, titanium, aluminum, and other specialized materials. This versatility allows manufacturers to select the best material for the application, balancing strength, corrosion resistance, and weight.

Cost-Effective for Low to Medium Production Runs: While the initial setup for investment casting can be expensive due to the need for molds and wax patterns, the process is cost-effective for low to medium production runs. The ability to produce multiple parts at once through the use of a "tree" system can also reduce costs.

High Strength and Durability: Parts produced through investment casting tend to have high mechanical strength and durability. This makes them suitable for demanding applications, such as aerospace, automotive, and medical device manufacturing, where performance and reliability are critical.

Minimal Post-Processing: Due to the high precision of investment casting, parts typically require very little post-processing. This reduces the time and cost involved in producing the final component.

Applications of Investment Casting

Investment casting is used in a variety of industries that require precise and reliable metal components. Some common applications include:

Aerospace: The aerospace industry relies heavily on investment casting for producing components such as turbine blades, fuel nozzles, and structural parts. The precision and material properties offered by investment casting make it ideal for the high-performance demands of this industry.

Automotive: Investment casting is used to manufacture critical engine components, such as turbocharger housings, suspension parts, and brake calipers. These parts need to be both strong and lightweight, making investment casting the preferred method.

Medical Devices: Investment casting is often used in the production of medical implants, such as joint replacements and surgical tools. The high level of precision and ability to create complex shapes are essential for these applications.

Energy: Investment casting is used to create components for the energy industry, including valves, pumps, and turbine blades for power plants, oil and gas extraction, and renewable energy technologies.

Art and Jewelry: The fine details and intricate designs achievable with investment casting make it a popular choice for creating high-quality art pieces, sculptures, and jewelry. The ability to replicate fine features makes it ideal for these applications.

Conclusion

Investment casting is a versatile and effective manufacturing process that offers a wide range of benefits, including high precision, the ability to create complex shapes, and versatility in material selection. While it does come with some challenges, particularly in terms of initial costs and size limitations, the advantages it offers for producing high-quality components make it an essential method in many industries, from aerospace and automotive to medical devices and art.

By understanding the basics of investment casting, manufacturers can make more informed decisions about whether it is the right choice for their specific production needs, ensuring that they can take full advantage of its unique capabilities.
