Lead time only need 15days
Both carbon steel and stainless steel ones are available.
Engineered for industrial safety applications, our heavy-duty gate hinge system provides reliable self-closing functionality for:
✓Access platform barriers
✓Rooftop fall protection systems
✓Perimeter guarding in manufacturing facilities
✓Hazardous area containment gates
Construction Features

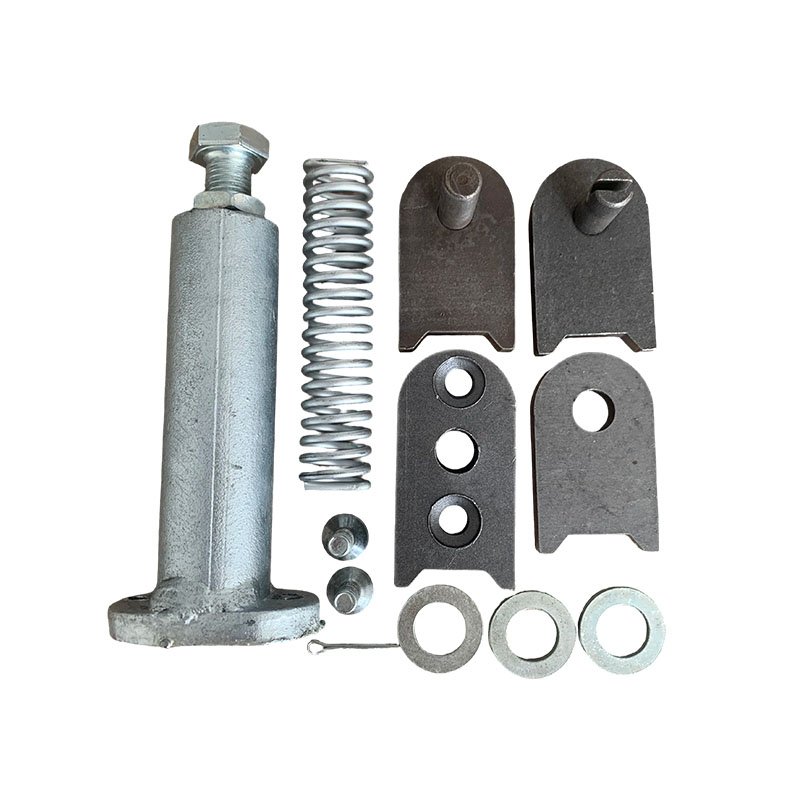

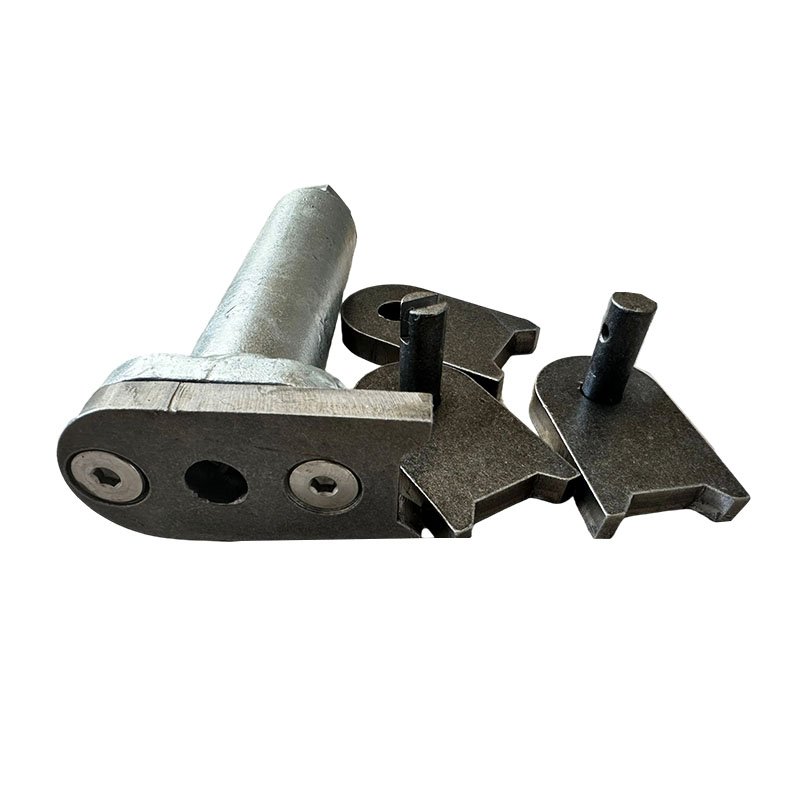

Four-Point Mounting System: Four mild steel lugs (weldable to both round and square tubing)
Universal Compatibility: Adaptable to various pipe profiles (standard sizes 40x40mm to 50x50mm square or Ø42.4mm-Ø48.3mm round)

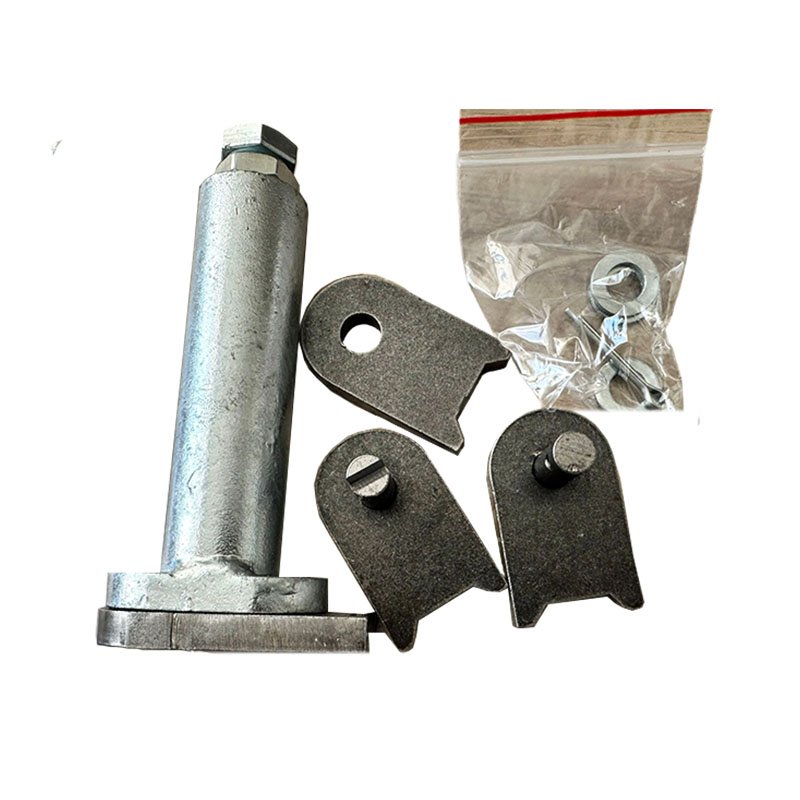

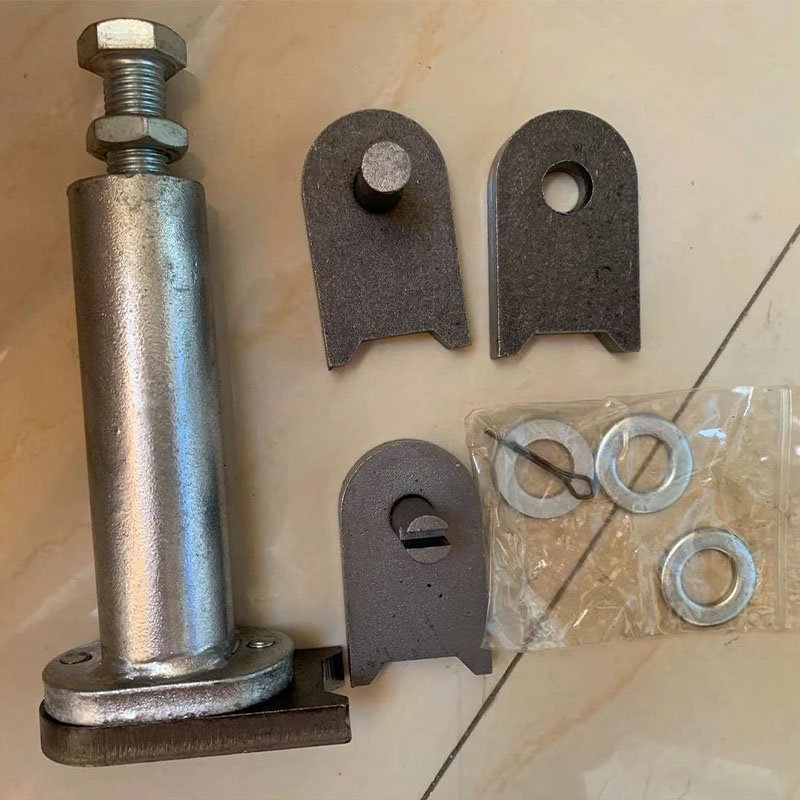

Complete Hardware Kit: Includes all necessary installation components
Material Specifications
Corrosion Protection: All components hot-dip galvanized (minimum 80μm coating thickness)
✓Spring mechanism
✓Housing assembly
✓Fasteners (screws, washers, split pins)
Base Material: Carbon steel (grade Q235 or equivalent)
Installation Options
Basic Type: Ready-to-weld hinge assembly (direct field installation)

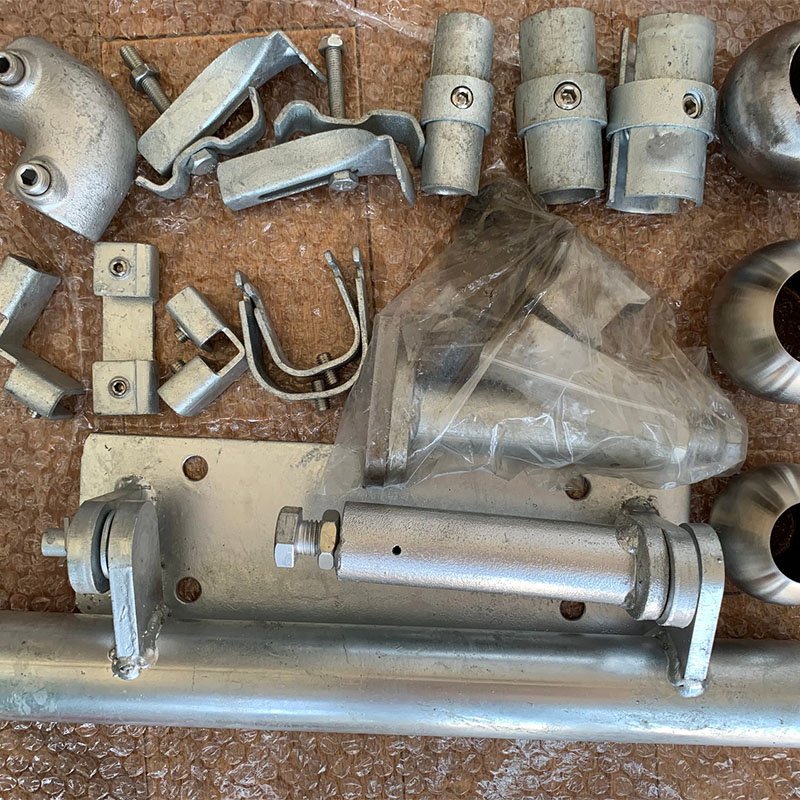

Pre-Fabricated Solution: Optional welded pipe and mounting plate kit for simplified on-site installation
✓Reduces field labor time by up to 60%
✓Ensures perfect alignment of hinge components
Performance Characteristics
Self-Closing Mechanism: Positive return action maintains gate closure
Durability: Tested for 100,000+ operation cycles
Load Rating: Suitable for gates up to 150kg
Packing & Delivery

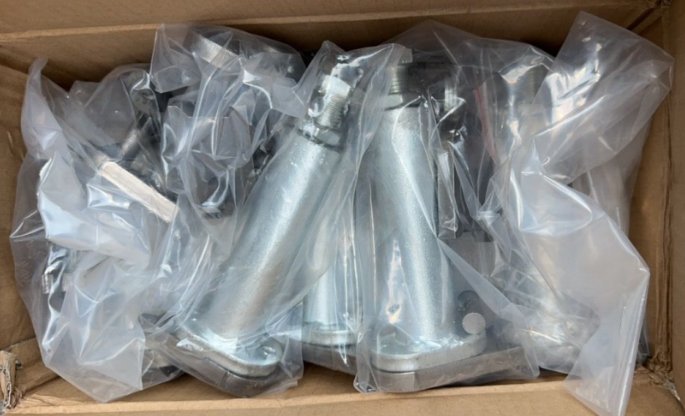

Basic packing: One set packed in one self-sealing transparenet bag, 10 sets in one carton, and packed in polywood case outside finally. Or can provide customized packaging solutions based on client specifications to ensure optimal product protection during transit.
Transportation: We can handle shipping via express courier, air freight, and sea freight. We support various international trade terms such as FOB, CFR, CIF, EXW, DAP, and DDU. For oversized machinery components, we may employ modular disassembly to ensure safer and more cost-effective transportation.
