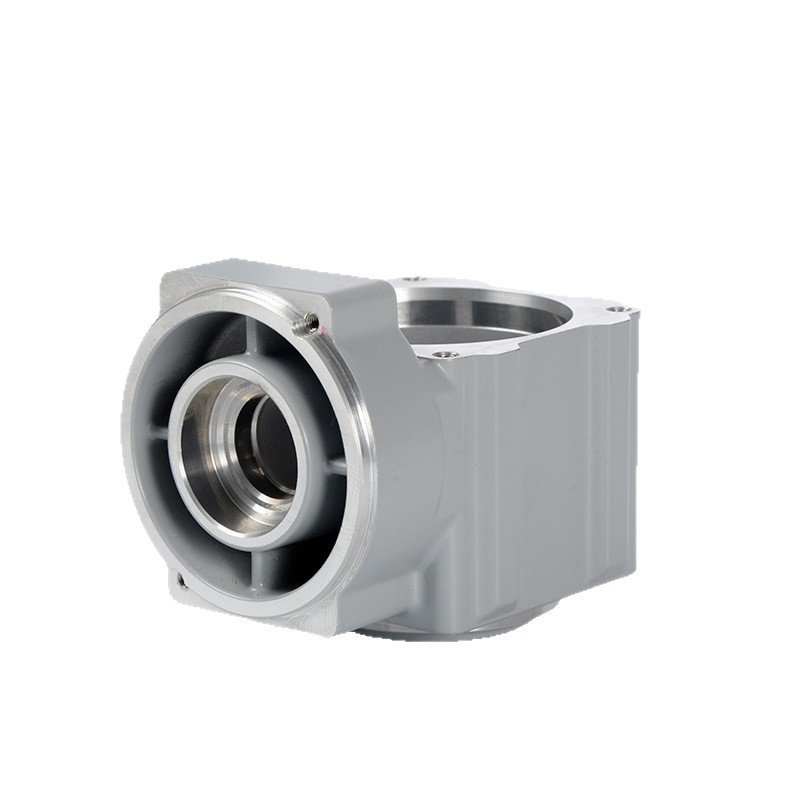

Precision Aluminium Die Casting Manufacturing for High-Volume Production

The process begins with the preparation of high-quality aluminum alloys, most commonly from the 3xx series (e.g., A380, ADC12) or the 4xx series (e.g., A413), which offer an excellent balance of fluidity, mechanical strength, and corrosion resistance. The molten metal is heated to temperatures between 620°C and 680°C, depending on the specific alloy composition, and then transferred to a shot chamber. In a cold-chamber die casting machine—the preferred configuration for aluminum due to its high melting point—a hydraulic plunger injects the molten metal into the steel die at pressures ranging from 1,000 to 30,000 psi. This rapid injection, typically completed in milliseconds, ensures that the molten alloy fills every intricate cavity, thin wall section, and fine detail before solidification occurs.

One of the standout advantages of aluminium die casting is its ability to produce parts with near-net shape, significantly reducing or even eliminating secondary machining operations. Typical wall thicknesses can be as thin as 0.8 mm, while dimensional tolerances are maintained within ±0.05 mm for critical features. The high thermal conductivity of aluminum—approximately 150–200 W/m·K—also makes this process ideal for heat-sensitive applications such as LED lighting housings, power electronics enclosures, and engine cylinder heads. Furthermore, the natural oxide layer that forms on cast aluminum surfaces provides intrinsic corrosion resistance, enhancing product longevity in harsh environments.

From a design engineering perspective, aluminium die casting offers remarkable flexibility. Ribs, bosses, threaded inserts, and cooling channels can all be integrated directly into the casting, reducing assembly time and overall system weight. The process supports insert molding, where steel or brass components are placed in the die prior to injection, creating permanent, load-bearing joints without post-cast welding or fastening. Additionally, the high fluidity of molten aluminum under pressure ensures excellent reproduction of surface textures, including logos, grain patterns, and functional micro-features.

However, successful aluminium die casting requires meticulous control over several critical parameters. Injection velocity, metal temperature, die temperature, and hold pressure must be tightly monitored to prevent common defects such as porosity, cold shuts, or flow lines. Advanced vacuum-assisted die casting and squeeze-casting techniques are increasingly employed to minimize gas entrapment, producing components that meet stringent pressure-tightness requirements for hydraulic and pneumatic systems. The steel dies themselves are typically heat-treated and coated with specialized release agents to withstand thermal cycling and abrasive molten metal flow, ensuring tool life of up to 100,000 to 500,000 shots before refurbishment.

In terms of secondary processing, aluminium die castings are highly compatible with surface finishing operations such as powder coating, e-coating, anodizing, and chrome plating. The cast surface, though smooth as-cast, can be polished or vibratory-finished for aesthetic or tribological improvements. Heat treatment—specifically T5 or T6 tempering—can further enhance mechanical properties, increasing tensile strength to over 300 MPa and hardness to 90–100 HBW, making these components suitable for structural applications.

Environmentally, aluminium die casting is a sustainable choice. The scrap material—including runners, overflows, and flash—is almost 100% recyclable, and the aluminum recycling process consumes only 5% of the energy required for primary production. This aligns with global decarbonization goals and offers manufacturers a tangible pathway to reduce their carbon footprint.

In conclusion, aluminium die casting stands as a cornerstone of modern precision manufacturing, delivering lightweight, strong, and highly repeatable metal components with unparalleled production efficiency. Whether for high-volume automotive powertrain parts, intricate electronic enclosures, or mission-critical aerospace fittings, this process continues to push the boundaries of what is achievable in metal forming. By combining advanced alloy science, precision tooling, and process automation, aluminium die casting remains an indispensable technology for engineers seeking performance, reliability, and cost-effectiveness in today’s competitive industrial landscape.

Key Applications and Performance Benefits

In the automotive industry, aluminium die casting produces transmission cases, structural crossbeams, steering housings, and electric motor rotors—all benefiting from the alloy’s ability to absorb impact energy and dampen vibration. Aerospace engineers rely on cast aluminum for avionics chassis, hydraulic manifolds, and seat structures, where predictable fatigue behavior and strict dimensional stability are non-negotiable. Consumer electronics, such as laptops, smartphones, and wearable devices, exploit the process to create thin-walled, aesthetically pleasing enclosures that also serve as integral heat spreaders.

From a production standpoint, aluminium die casting excels in high-volume runs. Typical die life can exceed 100,000 to 1,000,000 shots, depending on alloy and part complexity, ensuring consistent quality over extended manufacturing campaigns. The as-cast surface finish often achieves Ra values of 1–2 micrometers, which reduces or eliminates the need for polishing before painting or plating. Designers also appreciate the freedom to integrate features like bosses, ribs, and mounting holes directly into the casting, consolidating multiple fabricated parts into a single, lighter, more reliable assembly.

FAQ：

Q1: What is the MOQ?

A1: MOQ depends on customers' needs, trial orders are also welcomed before mass-production.

Q2: How long is the mass production?

A2: It varies depending on product dimension,technical requirements and quantities. Lead time usually needs 25-35days.

Q3: What should I do to get a quote ?

A3:Please send us 2D or 3D drawings (with material, dimension, tolerance, surface treatment and other technical requirement etc.) ,quantity, application or samples,more detailed information will be big help to us. Then price will be offered within 24h.

Q4: How to know how is my order going on without visiting your company?

A4: Detailed production schedule and weekly reports with digital pictures and videos which show the machining progress, will be sent to you.

Q5: How can we process the order?

A5: After confirming the order,Proforma invoice and payment list for deposit will be sent to you accordingly . After receiving your deposit, production will be arranged accordingly at once and finish goods about 25-3days based on different quantities.

Q6: What payment terms do you accept?

A6: T/T, L/C, Paypal, western union, etc.
