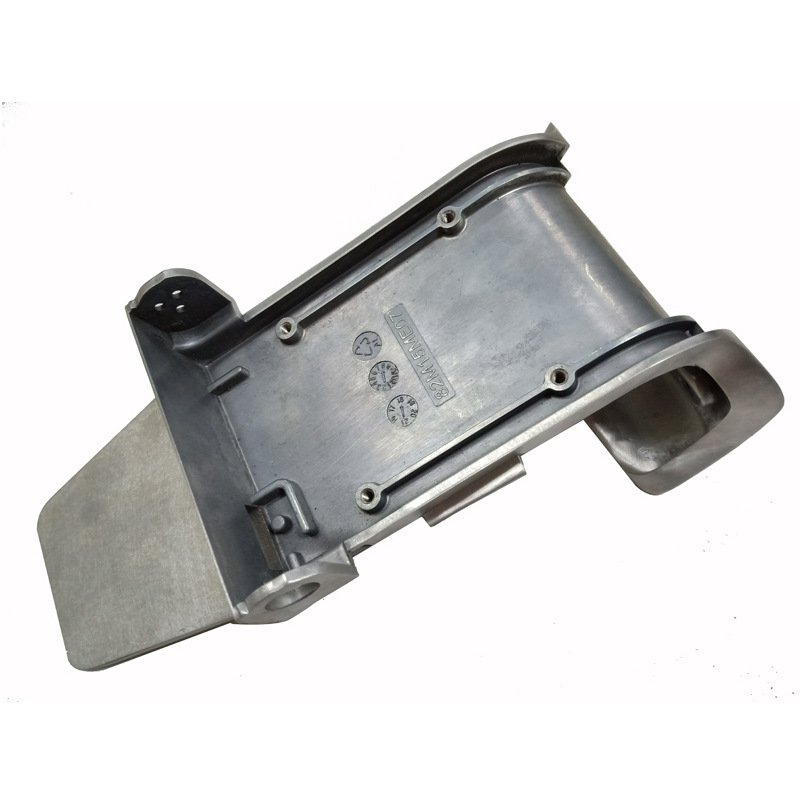

Custom OEM Zinc Die Casting Services | Precision Precision Components

Zinc Die Casting: Application-Specific Technical Capabilities

Zinc die casting delivers measurable performance advantages across automotive, hardware, and industrial sectors through a combination of precision, material properties, and process efficiency. Achieving tolerances of ±0.05 mm, wall thicknesses to 0.5 mm, and cycle times of 2–10 seconds, the process produces near-net-shape components with minimal secondary operations. Zamak 3 (tensile 250–290 MPa, yield 210–230 MPa, elongation 5–10 %) serves as the workhorse alloy, while Zamak 5 offers enhanced hardness (91–100 HRB) for wear-resistant applications.

Automotive: Functional Consolidation and Dimensional Stability

The automotive sector exploits zinc die casting for its capacity to integrate multiple features into single components. Carburetor bodies, fuel injection housings, throttle bodies, braking elements, steering column enclosures, and seatbelt retractor units exemplify high-performance assemblies where lubrication channels, threaded sensor ports, and mounting bosses are cast directly into the geometry. This consolidation eliminates separate fabrication and joining operations, reducing secondary machining, accelerating production, and removing welded joints and fasteners that could fail under cyclic loading. Interior trim applications—door handles, latching systems, instrument panel frameworks—capitalize on the alloy's ability to maintain tight tolerances and accept decorative surfaces. The long-term dimensional stability of zinc castings ensures assemblies preserve alignment and functionality through temperature excursions (-40 °C to +150 °C) and persistent vibration, validating the process for cost-effective, durable vehicle systems.

Hardware: Surface Quality and Decorative Finishing

The hardware industry leverages zinc die casting for its naturally smooth, pore-free surface that readily accepts electroplated coatings—chrome, brass, nickel, satin bronze—with uniform adhesion and no pitting or blistering. This substrate quality enables premium door hardware, cabinet fittings, and ornamental elements that meet design specifications while passing 96+ hour salt-spray corrosion tests. Security components—lock cylinders, latch housings, deadbolt assemblies—benefit from cost-effective high-volume production, with internal clearances held to microscopic tolerances ensuring smooth key operation and tamper resistance. The excellent mold-filling characteristics permit integration of brand logos, serial numbers, and identifiers directly into tooling, eliminating secondary engraving, etching, or labeling operations while ensuring permanent legibility. Hardware OEMs thus achieve visually striking, tactilely pleasing products that retain appearance and mechanical integrity under rigorous commercial use.

Industrial: Pressure-Tight Integrity and Flow Efficiency

In fluid handling and power transmission equipment, operational reliability is non-negotiable. Zinc die casting produces pressure-retaining components—pump bodies, valve casings, actuator housings, hydraulic manifolds, pneumatic couplings—with smooth internal flow geometries that minimize pressure losses and turbulence. The low thermal expansion coefficient and exceptional dimensional stability ensure sealing surfaces (O-ring grooves, flange faces, threads) preserve profiles across temperature and pressure fluctuations. Intricate internal porting is cast directly, reducing drilling and cross-boring while eliminating potential leakage paths. Smooth bore finishes reduce cavitation erosion, extending service intervals. Components exhibit consistent interchangeability without selective fitting, simplifying assembly. Zinc die casting delivers the fatigue strength for transmission housings combined with corrosion resistance for aggressive media, ensuring reliable operation in demanding factory and field environments.

Advantages of Zinc Die Casting

Zinc die casting delivers a unique combination of performance, economy, and design freedom that has made it a manufacturing mainstay across multiple industries. Beyond its well-known capability for producing complex, near-net-shape components, the process offers a distinct set of advantages that address critical engineering priorities—long-term reliability, tooling cost efficiency, electromagnetic shielding, assembly consolidation, and environmental sustainability:

Inherent protection for sensitive electronics. Zinc alloys provide outstanding shielding against both electric and magnetic fields, significantly outperforming plastics with conductive coatings or metalized surfaces. This intrinsic property is critical for ensuring electromagnetic compatibility and meeting stringent regulatory requirements in consumer electronics, automotive control systems, telecommunications infrastructure, and medical devices. The shielding effectiveness remains consistent throughout the component's lifetime, unaffected by surface wear or environmental degradation.

Enduring performance across decades of servic. Zinc inherently resists corrosion through the formation of a stable, self-limiting patina that protects the underlying material in a wide range of environmental conditions. When appropriately alloyed and finished, zinc die castings maintain their mechanical properties, dimensional accuracy, and cosmetic appearance over extended service intervals. This proven reliability is evidenced by their extensive and sustained use in automotive, architectural, and industrial applications demanding decades of trouble-free operation.

Durability that reduces per-part tooling costs. The relatively moderate melting temperature of zinc alloys—ranging from 390°C to 440°C—substantially reduces thermal fatigue and erosive wear on die steel compared to higher-temperature casting processes such as aluminum or magnesium. This favorable thermal regime extends tool life to several hundred thousand, and in many cases over one million, shots before refurbishment or replacement becomes necessary. The resulting reduction in per-part tooling amortization significantly improves overall process economy.

Integration that simplifies assemblies. The process enables the consolidation of multiple functions into a single casting through the incorporation of bosses, ribs, gussets, mounting points, and locating features directly into the part geometry. This integration capability substantially reduces overall part count, minimizes assembly complexity, lowers inventory requirements, and decreases total system cost. Engineers enjoy considerable design freedom to optimize component geometry for both functional performance and manufacturability.

Responsible resource utilization. Zinc die castings offer an excellent strength-to-weight ratio, enabling engineers to design lightweight components without compromising structural performance. The process generates minimal waste, as runners, overflows, and scrap material can be remelted and reintroduced into the production cycle within the same facility. Material utilization rates consistently exceed 95%, positioning zinc die casting as an environmentally responsible manufacturing choice that aligns with contemporary sustainability imperatives.

FAQ

Q1: What information do I need to provide to get a quotation?

A1: Please send us 2D or 3D drawings (including material, dimensions, tolerances, surface treatment, etc.), quantity, application, or physical samples. The more details you provide, the more accurate our quotation will be. We will respond with a formal price offer within 24 hours.

Q2: How long does mass production take?

A2: Production lead time depends on part size, design complexity, and order volume. In general:

Mass production: 25–35 working days. Prototype or small-batch orders: 10–20 working days

Q3: What is the minimum order quantity (MOQ)?

A3: There is no fixed MOQ. We welcome trial orders and prototype quantities before mass production. Tooling costs are amortized based on your order volume.

Q4: What is the standard order processing procedure?

A4: The process is as follows: quotation → deposit payment → tooling preparation → sample approval → mass production → final inspection → balance payment & shipping. After receiving your deposit, production will be arranged immediately.

Q5: What payment terms do you accept?

A5: We accept T/T, L/C, PayPal, and Western Union. T/T with 30%–50% deposit is the most common option. Customized payment terms are available for long-term partners.

Q6: How is order transparency maintained throughout production?

A6: Our customer communication protocol ensures full visibility. On confirmation of your order, we issue a detailed, milestone-based production timeline. We supplement this with weekly digital reports, including high-resolution imagery and video footage, documenting key stages from machining to final quality assurance. Furthermore, your designated account manager is on standby for any immediate questions or status requests.
