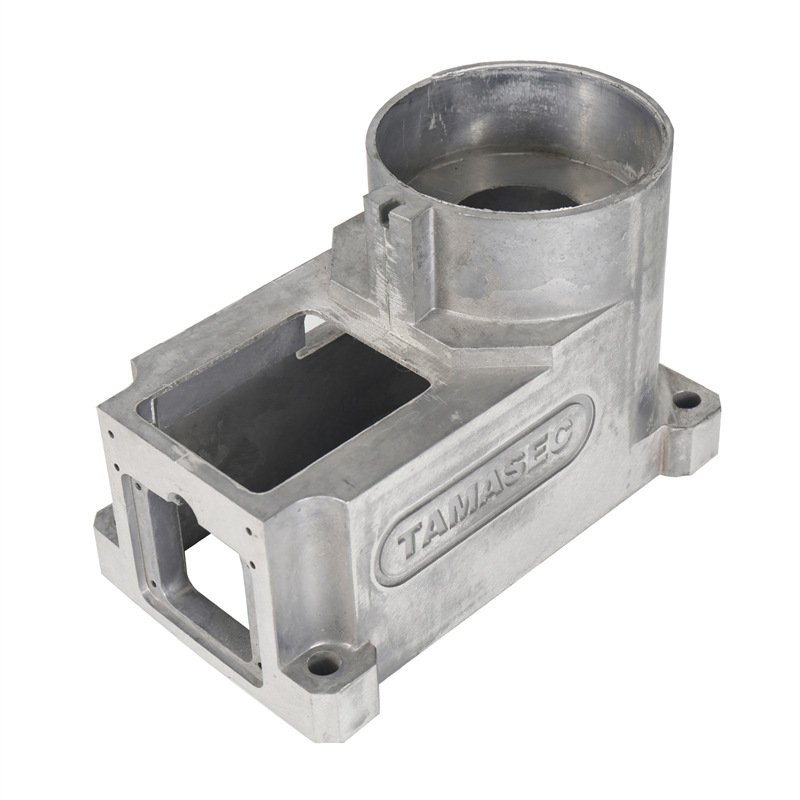

Aluminium Die Casting Customized Solutions OEM Components for Aerospace & Medical

Introduction

Aluminium die casting is a high-pressure, high-speed metal forming process that injects molten aluminium alloy into precision-engineered steel dies (casting molds) to produce complex, near-net-shape components with exceptional dimensional accuracy and superior surface finish. As one of the most versatile and cost-effective manufacturing methods available today, this technology serves as the backbone of mass production across the automotive, aerospace, electronics, telecommunications, medical device, and industrial machinery sectors. The process transforms aluminium—a lightweight, corrosion-resistant, and highly recyclable material—into finished or near-finished parts that typically require minimal secondary operations prior to assembly.

The aluminium die casting cycle is a meticulously controlled sequence of operations, typically completed in 15 to 90 seconds depending on component size and geometric complexity. The process begins with the clamping of two hardened tool steel die halves, which are precisely machined to form the exact cavity geometry of the desired part. These dies are equipped with internal water-cooling channels, ejector pins, and sliding cores to accommodate undercuts and internal features, enabling the production of highly intricate geometries that would be difficult or impossible to achieve through other manufacturing routes.Molten aluminium alloy, maintained at temperatures between 620 °C and 680 °C, is transferred from a holding furnace to the shot sleeve of a cold-chamber casting machine. A hydraulic plunger then drives the metal into the closed die cavity at velocities reaching 60 meters per second, under pressures ranging from 1,500 psi to over 30,000 psi. This high-velocity filling, completed within 20 to 80 milliseconds, ensures that the liquid metal faithfully replicates every intricate detail of the tool—including fine ribs, thin walls, bosses, and threaded holes—before rapid solidification occurs. The combination of high pressure and high filling speed is what distinguishes die casting from other casting methods, enabling the production of thin-walled sections as narrow as 0.5 mm while maintaining structural integrity.

The dimensional precision achieved through aluminium die casting is exceptional. Standard tolerances conform to CT 6–7 per ISO 8062, with precision tooling reaching CT 4 for critical features. Surface roughness on as-cast components typically ranges from Ra 1.6 to 6.3 µm, often eliminating the need for secondary polishing operations. This near-net-shape capability translates directly into reduced machining costs, shorter lead times, and minimized material waste—all critical factors in competitive manufacturing environments. The automotive industry remains the largest consumer of aluminium die castings, accounting for approximately 80% of global output. Key applications include transmission housings, engine blocks, structural crossbeams, battery enclosures, and electric motor housings. The rise of electric vehicles has accelerated demand for lightweight structural components, with giga-casting technologies enabling the production of entire rear floor panels and shock towers as single castings—replacing assemblies that once required dozens of stamped steel parts and extensive welding operations. This parts consolidation not only reduces weight by 25–40% but also eliminates hundreds of fasteners and welding points, improving structural rigidity and crash performance while cutting assembly time from days to minutes. Beyond automotive, aluminium die casting serves the electronics industry through smartphone frames, tablet back-covers, and smartwatch bodies, where both structural integrity and aesthetic surface quality are essential. The telecommunications sector relies on cast aluminium cavity filters and base station heat sinks for 5G infrastructure, capitalizing on the material's thermal management capabilities. In industrial machinery, cast aluminum components such as robot arm linkages, servo motor mounts, and hydraulic valve manifolds benefit from the excellent stiffness-to-weight ratio and pressure integrity that die casting provides. Aerospace and medical applications—including avionics chassis, instrument mounting boards, dental chair arms, and diagnostic scanner frames—depend on the process's reliability, fatigue resistance, and crevice-free surfaces that facilitate hygiene.

To ensure consistent quality, die casters employ rigorous process controls. Incoming alloy batches are verified through spectrometer analysis for chemical composition. In-process monitoring tracks cavity pressure, shot velocity, and die temperature in real time. First Article Inspection (FAI) provides a full dimensional layout report on initial samples using coordinate measuring machines (CMM) and optical measurement systems. Statistical Process Control (SPC) monitors critical dimensions across production runs, enabling early detection of any process drift. Non-destructive testing methods—including X-ray inspection, ultrasonic testing, and dye penetrant examination—are deployed as required to verify internal integrity and surface condition. Many facilities operate under ISO 9001 and IATF 16949 (automotive) certifications, with full PPAP documentation and material traceability available upon request.

In summary, aluminium die casting stands as a cornerstone of modern manufacturing, seamlessly combining material efficiency, production speed, and geometric complexity into a single, cost-effective process. Its ability to produce lightweight, durable, and functional components—often with minimal secondary finishing—has made it indispensable across a widening array of industries. As automotive electrification, aerospace innovation, and consumer electronics miniaturization continue to accelerate, the demand for precisely cast aluminium components will only intensify. By leveraging advanced alloys, simulation-driven tooling design, and rigorous process control, manufacturers can fully realize the potential of this versatile technology—delivering components that are not only lighter and stronger but also more sustainable and economically competitive than ever before.
