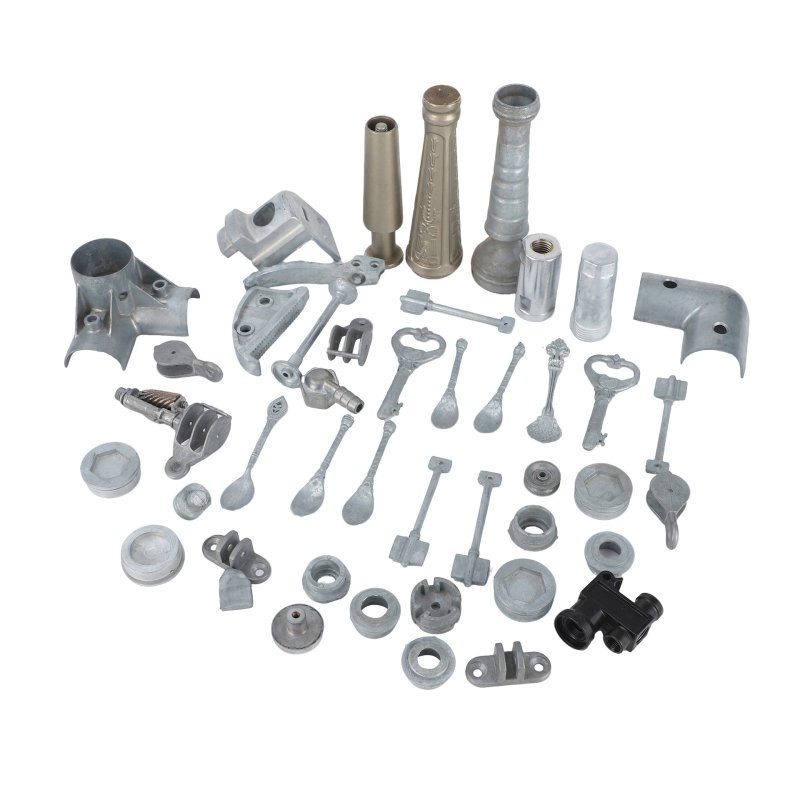

Aluminium Die Casting Customized Solutions OEM Components for Aerospace & Medical

Specifications

Parameter Specification Range

Single-part weight 0.1 – 22 kg (standard); up to 20–25 kg for specialized processes

Wall thickness 0.5 mm (minimum); standard range 1.5–6.0 mm

Dimensional tolerance ±0.2 mm (high precision); ±0.5 mm / up to 2.5 mm (standard)

Surface roughness Ra 1.6–6.3 µm (equivalent to ISO 5–8 grade finishes)

Maximum castable envelope OEM-customized, limited by die clamping force capacity

Advantages of Aluminium Die Casting

Aluminium die casting has established itself as a preferred manufacturing solution for engineers seeking to balance performance, cost, and sustainability. Its unique combination of material properties and process capabilities delivers distinct advantages that alternative methods—such as sand casting, forging, or machining from solid stock—cannot easily replicate.

Production Efficiency at Scale

The economics of aluminium die casting are driven by its rapid cycle times, typically ranging from 15 to 90 seconds. Multi-cavity tooling amplifies this efficiency by producing several components in a single shot, enabling annual output in the millions. Tooling costs, while significant upfront, are amortized over extensive production volumes, resulting in per-unit costs that are highly competitive. This cost advantage is particularly pronounced for components that would otherwise require multiple machining operations or assembly steps, as die casting delivers near-net shapes directly from the tool.

Lightweight Without Compromise

The density of aluminium—approximately one-third that of steel—offers immediate weight savings. However, the true engineering benefit lies in the combination of low mass with mechanical performance. Die-cast aluminium alloys achieve tensile strengths up to 48 ksi, enabling load-bearing applications where structural integrity cannot be sacrificed. For electric vehicles, every kilogram eliminated from the chassis or powertrain contributes to extended range; in aerospace, reduced mass translates to improved fuel efficiency and payload capacity. This strength-to-weight advantage, coupled with the design freedom to optimize material distribution through ribbing and variable wall sections, makes aluminium die casting an essential tool for weight-sensitive industries.

Intrinsic Sustainability

Aluminium is indefinitely recyclable without loss of properties, and the die casting industry capitalizes on this attribute. Scrap from runners, overflows, and rejected parts is returned to the melting furnace, achieving material recovery rates exceeding 95%. The energy required to remelt recycled aluminium is approximately 5% of that needed for primary production—a reduction that substantially lowers the carbon footprint of each finished component. This closed-loop material flow aligns with global sustainability mandates and offers manufacturers a credible pathway to meet corporate environmental responsibility targets without increasing production costs.

Applications

Automotive and Electric Vehicles

The automotive sector, accounting for the majority of global die casting output, leverages this technology for structural and powertrain components. Giga-casting has transformed vehicle architecture by producing large underbody sections as single castings, replacing welded assemblies of numerous stamped steel parts. This consolidation reduces vehicle weight, eliminates hundreds of fasteners, and enhances crash energy absorption. Electric vehicle battery trays, motor housings, and thermal management components further demonstrate the process's relevance as the industry transitions toward electrified mobility.

Robotics and Industrial Automation

Aluminium die casting is instrumental in the design of lightweight, responsive robotic systems. Robot arm segments, wrist housings, and end-effector mounts require precise motion control with minimal inertia—attributes directly supported by the stiffness-to-weight performance of cast aluminium. In servo-driven applications, the dimensional stability of die-cast components ensures consistent kinematic behavior, while the ability to integrate cable routing and sensor mounting features directly into the casting reduces assembly complexity and improves system reliability.

Medical and Healthcare Equipment

The medical device industry demands materials and processes that ensure sterility, durability, and biocompatibility. Aluminium die casting meets these requirements through crevice-free surfaces that resist bacterial colonization and facilitate thorough cleaning. Applications range from diagnostic imaging equipment frames and surgical tool housings to mobility aids and patient positioning devices. The process's repeatability is critical for components that must meet FDA or MDR approval, as consistent mechanical properties and dimensions are prerequisites for regulatory compliance.

Telecommunications and Data Infrastructure

With the proliferation of 5G networks, data centers, and edge computing, thermal management has become a defining challenge. Aluminium die casting addresses this by producing housings and heat sinks with integrated cooling fins that maximize surface area for convective heat transfer. The electrical conductivity of aluminium also enables cast components to provide EMI shielding, reducing interference in high-frequency circuits. Outdoor telecommunications enclosures benefit from the material's corrosion resistance, ensuring long-term performance in exposed environments.

Aluminium Die Casting Frequently Asked Questions (FAQ)

Q1: What is the minimum order quantity (MOQ)?

A1: There is no fixed MOQ. We welcome trial orders and prototype quantities before mass production. Tooling costs are amortized based on your order volume.

Q2: What information do I need to provide to get a quotation?

A2: Please send us 2D or 3D drawings (including material, dimensions, tolerances, surface treatment, etc.), quantity, application, or physical samples. The more details you provide, the more accurate our quotation will be. We will respond with a formal price offer within 24 hours.

Q3: How long does mass production take?

A3: Lead time varies depending on part dimensions, technical complexity, and order quantity. Typically, mass production takes 25–35 working days. Prototype and small-batch orders can be completed in 10–20 working days.

Q4: What is the standard order processing procedure?

A4: The process is as follows: quotation → deposit payment → tooling preparation → sample approval → mass production → final inspection → balance payment & shipping. After receiving your deposit, production will be arranged immediately.

Q5: What payment terms do you accept?

A5: We accept T/T, L/C, PayPal, and Western Union. T/T with 30%–50% deposit is the most common option. Customized payment terms are available for long-term partners.

Q6: How can I track my order status without visiting your company?

A6: We provide a detailed production schedule upon order confirmation, plus weekly progress reports with digital photos and videos showing the machining and inspection progress. Your dedicated account manager is available for real-time updates.

Q7: Can you assist with die design and tooling development?

A7: Yes, we offer full in-house tooling design and manufacturing. Our engineering team uses advanced simulation software to optimize gating and cooling systems for high-quality castings and extended die life.

Q8: Do you provide samples before mass production?

A8: Yes. Sample parts are produced and sent for your approval before mass production. Samples are typically delivered within 10–15 working days after die completion, along with a dimensional inspection report and material certificate.
