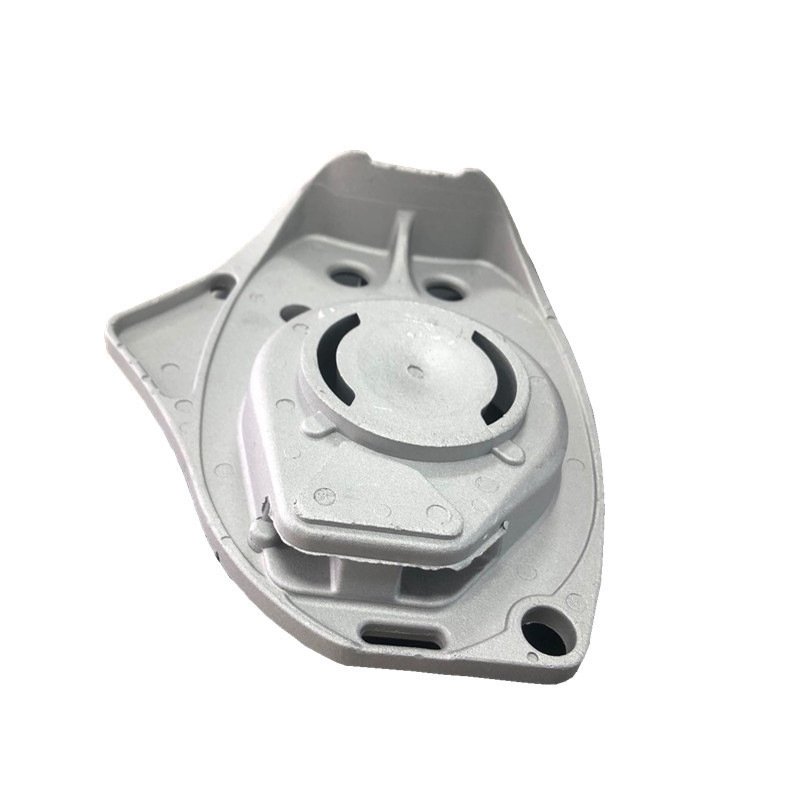

Aluminium Die Casting Custom Engineered Components for Industrial Automation & Robotics

How Aluminium Die Casting Delivers Cost Advantage？

Aluminium die casting achieves its cost advantage through a combination of high-speed production, material efficiency, design integration, and reduced secondary operations. Unlike subtractive manufacturing methods that start with solid stock and remove material to achieve the final shape, die casting is a near-net-shape process that produces components very close to their final geometry directly from the tool. This fundamental difference underpins the economic superiority of die casting for high-volume applications.

The most immediate cost driver is production speed. Cycle times for aluminium die casting typically range from 15 to 90 seconds, depending on component size and complexity. Multi-cavity tooling amplifies this efficiency by producing two, four, or even more components with each shot. This enables annual production volumes in the millions from a single die set. The high throughput translates into exceptionally low unit costs, as the fixed costs of machine operation, labor, and overhead are spread across a vast number of parts. For high-volume programs such as automotive powertrain components or electronic housings, per-part costs can be reduced to fractions of a cent per gram.

Tooling investment, while substantial, is amortized over extensive production runs. A typical die set for aluminium die casting may cost between $20,000 and $150,000 depending on complexity and cavity count. When amortized over 100,000 to 500,000 shots—and potentially over 1 million parts when using multi-cavity dies—the per-part tooling cost becomes negligible. This contrasts sharply with machining or fabrication approaches where tooling costs may be lower upfront but per-part costs remain consistently higher due to slower production rates and higher labor content.

The near-net-shape capability of die casting is perhaps its most significant cost advantage. Components emerge from the die with dimensional tolerances of CT 6–7 per ISO 8062 and surface finishes of Ra 1.6–3.2 µm. This eliminates the need for extensive machining operations that would otherwise consume time, tooling, and skilled labor. Features such as bosses, ribs, mounting flanges, and threaded inserts can be cast directly into the part, avoiding post-cast drilling, tapping, or welding. For components that would require multiple setups on CNC machining centers—involving drilling, milling, turning, and tapping—die casting reduces machining to only critical mating surfaces and high-precision bores, often achieving an 80–90% reduction in secondary processing costs.

Furthermore, design integration enables parts consolidation. A single aluminium die casting can replace assemblies of multiple stamped, machined, and welded components. This reduces the total number of parts, eliminates hundreds of fasteners, and simplifies supply chain logistics. Assembly time, labor costs, and quality inspection points are all reduced. For example, what once required 18 separate stamped steel parts and extensive welding can now be produced as a single cast component in two minutes. The elimination of assembly operations, in-process inventory, and handling costs often accounts for savings that exceed the raw material cost difference between aluminium and steel.

Material utilization in die casting is exceptionally high. Scrap generated from runners, overflows, and flash is collected and returned to the melting furnace, achieving material recovery rates exceeding 95%. This closed-loop recycling minimizes raw material waste and reduces the cost of scrap disposal. In contrast, machining from solid billet or plate generates significant material waste—often 60–80% of the starting stock is removed as chips, which must be collected, transported, and recycled with lower recovery rates and additional handling costs.

Energy efficiency further contributes to cost advantage. The process consumes energy primarily during melting and holding, with the actual injection and cooling cycle being relatively low in energy demand. The use of recycled aluminium in the melt reduces energy consumption by 95% compared to primary production, lowering electricity costs and insulating producers from price volatility in primary aluminium markets.

Finally, the repeatability of die casting minimizes quality-related costs. Once process parameters are optimized, the process delivers consistent components with low dimensional variation. This reduces inspection frequency, lowers scrap rates, and minimizes field failures or warranty claims. Statistical process control and in-process monitoring further enhance consistency, ensuring that the millionth part matches the first.

In summary, the cost advantage of aluminium die casting is not derived from a single factor but from a synergistic combination of high-speed production, near-net-shape capability, parts consolidation, material efficiency, and quality consistency. For applications requiring volumes above 10,000 units annually, die casting typically delivers the lowest total cost of ownership among all manufacturing processes, making it an economically compelling choice for engineers and purchasing professionals alike.

How Aluminium Die Casting Supports Key Industry Applications?

Robotics and Industrial Automation

Aluminium die casting is instrumental in the design of lightweight, responsive robotic systems. Robot arm segments, wrist housings, and end-effector mounts require precise motion control with minimal inertia—attributes directly supported by the stiffness-to-weight performance of cast aluminium. In servo-driven applications, the dimensional stability of die-cast components ensures consistent kinematic behavior, while the ability to integrate cable routing and sensor mounting features directly into the casting reduces assembly complexity and improves system reliability.

Automotive and Electric Vehicles

The automotive sector, accounting for the majority of global die casting output, leverages this technology for structural and powertrain components. Giga-casting has transformed vehicle architecture by producing large underbody sections as single castings, replacing welded assemblies of numerous stamped steel parts. This consolidation reduces vehicle weight, eliminates hundreds of fasteners, and enhances crash energy absorption. Electric vehicle battery trays, motor housings, and thermal management components further demonstrate the process's relevance as the industry transitions toward electrified mobility.

Telecommunications and Data Infrastructure

With the proliferation of 5G networks, data centers, and edge computing, thermal management has become a defining challenge. Aluminium die casting addresses this by producing housings and heat sinks with integrated cooling fins that maximize surface area for convective heat transfer. The electrical conductivity of aluminium also enables cast components to provide EMI shielding, reducing interference in high-frequency circuits. Outdoor telecommunications enclosures benefit from the material's corrosion resistance, ensuring long-term performance in exposed environments.

Medical and Healthcare Equipment

The medical device industry demands materials and processes that ensure sterility, durability, and biocompatibility. Aluminium die casting meets these requirements through crevice-free surfaces that resist bacterial colonization and facilitate thorough cleaning. Applications range from diagnostic imaging equipment frames and surgical tool housings to mobility aids and patient positioning devices. The process's repeatability is critical for components that must meet FDA or MDR approval, as consistent mechanical properties and dimensions are prerequisites for regulatory compliance.

Aluminium Die Casting Frequently Asked Questions (FAQ)

Q1: What is the minimum order quantity (MOQ)?

A1: There is no fixed MOQ. We welcome trial orders and prototype quantities before mass production. Tooling costs are amortized based on your order volume.

Q2: What information do I need to provide to get a quotation?

A2: Please send us 2D or 3D drawings (including material, dimensions, tolerances, surface treatment, etc.), quantity, application, or physical samples. The more details you provide, the more accurate our quotation will be. We will respond with a formal price offer within 24 hours.

Q3: How long does mass production take?

A3: Lead time varies depending on part dimensions, technical complexity, and order quantity. Typically, mass production takes 25–35 working days. Prototype and small-batch orders can be completed in 10–20 working days.

Q4: What is the standard order processing procedure?

A4: The process is as follows: quotation → deposit payment → tooling preparation → sample approval → mass production → final inspection → balance payment & shipping. After receiving your deposit, production will be arranged immediately.

Q5: What payment terms do you accept?

A5: We accept T/T, L/C, PayPal, and Western Union. T/T with 30%–50% deposit is the most common option. Customized payment terms are available for long-term partners.

Q6: How can I track my order status without visiting your company?

A6: We provide a detailed production schedule upon order confirmation, plus weekly progress reports with digital photos and videos showing the machining and inspection progress. Your dedicated account manager is available for real-time updates.

Q7: Can you assist with die design and tooling development?

A7: Yes, we offer full in-house tooling design and manufacturing. Our engineering team uses advanced simulation software to optimize gating and cooling systems for high-quality castings and extended die life.
