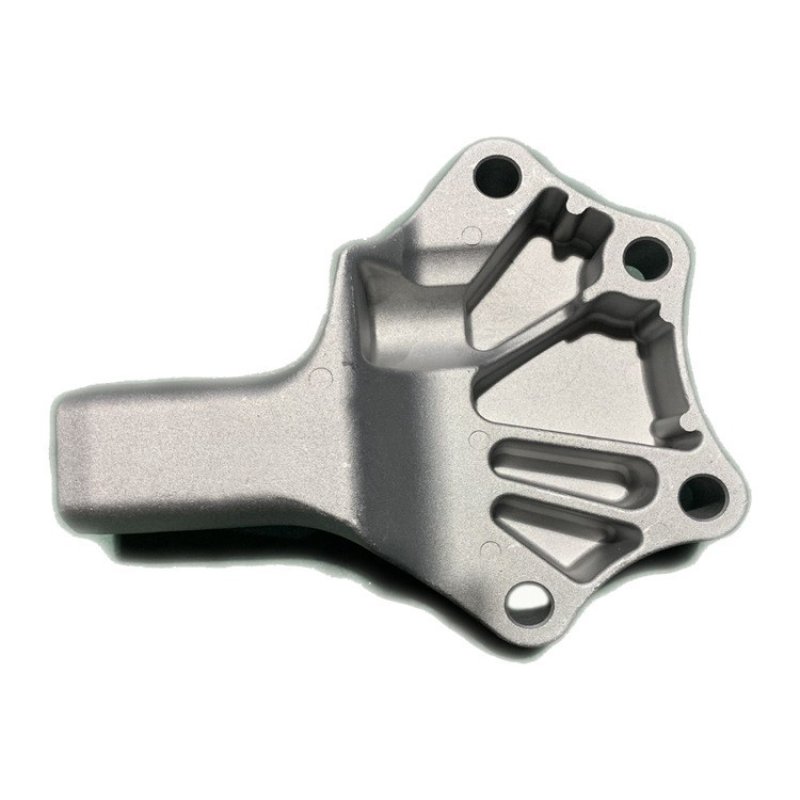

Aluminium Die Casting Custom Engineered Components for Industrial Automation & Robotics

The selection of aluminium alloy directly impacts the mechanical performance, castability, corrosion resistance, and post-treatment capability of the final component. Among the most commonly specified alloys:

What Makes Aluminium Die Casting a Superior Choice?

Aluminium die casting has earned its position as a leading manufacturing technology for producing lightweight, high-performance metal parts in large volumes. The process combines rapid production capabilities, outstanding material characteristics, and remarkable design freedom—delivering benefits that competing methods find difficult to match. Whether the goal is reducing structural weight, managing heat in electronic systems, or meeting environmental commitments, aluminium die casting offers a compelling solution across a diverse range of industries. The six key advantages outlined below explain why this process continues to be the preferred option for engineers and production specialists around the world.

1. Rapid, High-Volume Production Capability

The process operates on exceptionally short cycle times, often completed in less than a minute. With tooling designed to produce multiple parts per cycle, manufacturers can achieve annual outputs in the millions. This extraordinary throughput drives per-part costs to highly competitive levels, especially once the initial tooling investment is absorbed over sustained, high-quantity production schedules.

2. Remarkable Lightweight Strength

Aluminium weighs roughly one-third as much as steel while delivering tensile strengths up to 48 ksi in die-cast form. This outstanding strength-to-weight ratio makes it indispensable for reducing mass in automotive structures, extending the driving range of electric vehicles, and maximizing the efficiency of aerospace systems—where every kilogram saved has a direct and measurable impact on performance and energy consumption.

3. Integrated Design and Part Consolidation

Die casting allows features like mounting points, reinforcing ribs, cooling fins, and internal channels to be cast directly into the component. By transforming what would otherwise be assemblies of multiple parts into single integrated castings, engineers can reduce assembly time, eliminate tolerance stack-ups, and significantly cut the number of fasteners required—simplifying both production and supply chain logistics.

4. Efficient Thermal and Electrical Performance

With thermal conductivity ranging from 90 to 150 W/m·K, aluminium die castings are naturally effective at drawing heat away from sensitive electronics, LED modules, and motor drives. The material's electrical conductivity also enables cast housings to perform double duty as grounding conductors, simplifying system design and enhancing electromagnetic compatibility.

5. Durable Corrosion Protection

Aluminium develops a self-forming oxide layer that provides inherent resistance to corrosion. When further protected through chromate conversion coatings or anodizing, die-cast components can withstand aggressive service conditions, including salt spray, chemical exposure, and persistently humid environments—ensuring long-term reliability in demanding applications.

6. Environmentally Responsible Manufacturing

Aluminium die casting is inherently aligned with circular economy principles. Scrap metal generated during production—from runners, overflows, and rejected parts—is collected and reintroduced into the melting furnace, achieving material recovery rates exceeding 95%. This closed-loop system dramatically reduces both waste and carbon emissions compared to primary aluminium production, supporting manufacturers' sustainability objectives without compromising quality or cost.

How Aluminium Die Casting Supports Key Industry Applications?

Aluminium die casting has become an essential manufacturing technology across a diverse range of industrial sectors. Its ability to produce lightweight, dimensionally stable, and high-strength components at scale makes it uniquely suited to meet the evolving demands of modern engineering. The following examples illustrate how this process addresses the distinct challenges faced in four major application areas.

Automotive and Electric Vehicles

The automotive industry represents the largest market for aluminium die castings, employing the process for both structural frameworks and powertrain systems. Giga-casting has fundamentally changed vehicle construction by enabling large underbody sections to be cast as single pieces, eliminating the need for complex welded assemblies made from numerous stamped steel panels. This approach reduces overall vehicle mass, removes hundreds of fastening points, and improves energy absorption during collisions. As the industry accelerates toward electric mobility, aluminium die casting continues to demonstrate its value through the production of battery trays, electric motor housings, and thermal regulation components that are critical to EV performance, safety, and range.

Robotics and Industrial Automation

In the field of robotics, aluminium die casting contributes significantly to the development of lightweight, highly responsive systems. Components such as robotic arm segments, wrist housings, and gripper mounts rely on the excellent stiffness-to-weight characteristics of cast aluminium to achieve precise motion control with reduced inertia. In servo-driven machinery, the consistent dimensional stability of die-cast parts ensures reliable kinematic performance over extended operating periods. Additionally, the ability to integrate cable channels and sensor mounting features directly into the casting simplifies assembly, reduces part counts, and enhances overall system dependability.

Telecommunications and Data Infrastructure

The rapid expansion of 5G networks, cloud data centres, and edge computing has placed thermal management among the top design priorities. Aluminium die casting responds to this challenge with housings and heat exchangers that feature integrated cooling fins, maximising surface area for effective heat dissipation. The material's electrical conductivity also provides inherent electromagnetic interference shielding, protecting sensitive high-frequency circuitry from signal degradation. For outdoor installations, the natural corrosion resistance of aluminium ensures reliable performance in harsh environmental conditions over extended service lifetimes, reducing maintenance and replacement costs.

Medical and Healthcare Equipment

The medical sector imposes exacting standards on materials and manufacturing processes, demanding sterility, biocompatibility, and long-term durability. Aluminium die casting satisfies these criteria with smooth, crevice-free surfaces that resist bacterial adhesion and facilitate efficient cleaning and sterilisation. Typical applications include frames for diagnostic imaging systems, housings for surgical instruments, patient mobility aids, and positioning devices. The process's exceptional repeatability is particularly valuable for components subject to FDA or MDR approval, where consistent mechanical properties and dimensional accuracy are mandatory for regulatory clearance and patient safety.

Frequently Asked Questions (FAQ)

Q1: What is the minimum order quantity (MOQ)?

A1: There is no fixed MOQ. We welcome trial orders and prototype quantities before mass production. Tooling costs are amortized based on your order volume.

Q2: What details are required for an accurate quotation?

A2: To prepare a precise quote, please forward your 2D or 3D CAD files, along with specifications covering material grade, critical dimensions, allowable tolerances, and required surface finishes. Also indicate your estimated annual or per-order quantity and the intended application. Physical samples are welcome if available. We aim to respond with a formal quotation within 24 hours of receiving complete information.

Q3: How long does mass production take?

A3: Lead time varies depending on part dimensions, technical complexity, and order quantity. Typically, mass production takes 25–35 working days. Prototype and small-batch orders can be completed in 10–20 working days.

Q4: What is the standard order processing procedure?

A4: The process is as follows: quotation → deposit payment → tooling preparation → sample approval → mass production → final inspection → balance payment & shipping. After receiving your deposit, production will be arranged immediately.

Q5: How can I track my order status without visiting your company?

A5: We provide a detailed production schedule upon order confirmation, plus weekly progress reports with digital photos and videos showing the machining and inspection progress. Your dedicated account manager is available for real-time updates.

Q6: Can you assist with die design and tooling development?

A6: Yes, we offer full in-house tooling design and manufacturing. Our engineering team uses advanced simulation software to optimize gating and cooling systems for high-quality castings and extended die life.

Q7: What payment methods do you support?

A7: We accept a range of payment options to suit different order types and customer preferences. T/T (telegraphic transfer) is the most common, typically with a 30–50% deposit and balance before shipment
