Customized Zinc Die Casting Solutions for Complex Industrial Applications

Zinc die casting is a high-pressure metal casting process in which molten zinc alloy is forcibly injected into a precision-engineered steel mold, known as a die, under substantial pressure. This manufacturing technique is defined by its rapid production cycles, exceptional dimensional repeatability, and the capability to produce complex net-shape or near-net-shape components with fine feature resolution.

Quantity:

- +

(0) Reviews

INQUIRY NOW

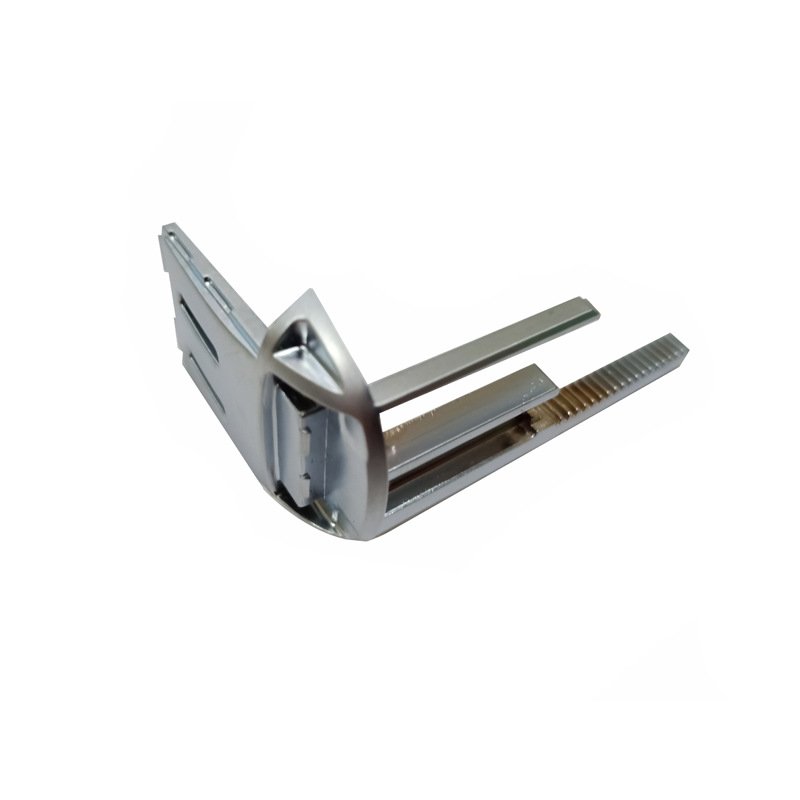

Product Description

The process initiates with the preparation of the zinc alloy feedstock, which is melted in a gas-fired or electrically resistant holding furnace. The melt temperature is precisely controlled, typically maintained between 390°C and 440°C, with the exact setpoint determined by the specific alloy composition and its liquidus temperature. Once the alloy reaches a fully liquid state with adequate superheat, the molten metal is transferred into a shot chamber. Two primary machine configurations exist: the hot-chamber system, where the injection mechanism is immersed in the molten metal bath, and the cold-chamber system, where the metal is ladled into a separate shot sleeve. For zinc alloys, the hot-chamber die casting machine is overwhelmingly preferred, owing to zinc’s relatively low melting point and exceptional fluidity. This configuration minimizes thermal degradation of the injection system components, such as the gooseneck and plunger, while enabling faster cycle times due to the continuous availability of molten metal.

Upon the molten zinc entering the shot sleeve, a hydraulically actuated piston advances forward, displacing the metal at high velocity through a carefully designed runner system and into the sealed die cavity. Injection pressures in zinc die casting typically range from 10 MPa to over 100 MPa, depending on the part geometry, wall thickness, and required surface finish. Fill times are extraordinarily brief, often measured in milliseconds, to ensure complete cavity filling before any significant solidification occurs. The die itself is fabricated from high-grade hot-work tool steel, such as H13 or H11, and comprises two primary halves: the stationary cover die, which is attached to the fixed platen of the machine, and the movable ejector die, which is mounted to the moving platen. During injection, these halves are clamped together with substantial force, typically ranging from 100 tons for small components to over 4,000 tons for large castings, to withstand the intense internal cavity pressures that would otherwise separate the die halves and produce excessive flash.

The filling phase is critical to casting integrity. As the liquid zinc traverses the gating system—comprising the sprue, primary and secondary runners, and finally the gates that interface with the cavity—the flow dynamics must be meticulously controlled. Turbulence is a particularly detrimental factor in zinc die casting, as it promotes air entrapment, oxide film folding, and consequent gas porosity within the solidified structure. Advanced gating strategies employ tapered runner cross-sections, strategically placed overflow wells, and fan-shaped or tangential gates to encourage laminar or near-laminar flow conditions. Additionally, many high-integrity applications incorporate vacuum assistance, where the cavity is evacuated prior to or during injection, dramatically reducing gas porosity and enhancing surface quality and pressure tightness.Once the cavity is completely filled, the process transitions to the intensification phase. During this stage, additional hydraulic pressure is applied to the still-molten metal within the shot sleeve, compensating for volumetric shrinkage that occurs as the alloy solidifies. Zinc alloys are characterized by a relatively narrow freezing range—typically 20°C to 30°C—which promotes a directional solidification front progressing from the cavity extremities back toward the gate. This characteristic is advantageous for producing thin-walled sections, frequently achieving wall thicknesses down to 0.5 mm, while preserving mechanical integrity and minimizing internal shrinkage defects.

Solidification proceeds rapidly within the water-cooled die. Cooling channels, precisely machined into both die inserts, circulate temperature-controlled water or oil to extract heat uniformly from the casting. This active thermal management controls the cooling rate, thereby minimizing thermal gradients that could induce distortion, residual stresses, or microstructural coarsening. After the casting has solidified to a sufficient skin thickness and the ejector mechanism is actuated, the clamp opens, and ejector pins push the finished casting out of the cavity. The complete cycle duration, from injection to ejection, commonly spans 5 to 30 seconds, contingent upon part mass, wall thickness, and cooling system efficiency.Following ejection, the casting undergoes a series of post-casting separation operations. The casting, still attached to the runner system and overflow wells, is transferred to a trimming press where the connective elements are sheared away. Flash—the thin excess material that forms along the parting line due to slight clearance between the die halves—is concurrently removed using hardened trimming dies or automated deflashing equipment. While many zinc die castings are utilized in the as-cast condition owing to the process’s inherent ability to produce smooth surfaces and highly detailed features—including sharp corners, raised lettering, and even fine-pitch threads—secondary operations such as precision machining, vibratory finishing, or protective coating may be specified for tighter tolerances or aesthetic requirements.The as-cast metallurgical structure of zinc die castings exhibits a fine-grained dendritic morphology, a direct consequence of rapid solidification under elevated pressure. Key alloying elements—primarily aluminum, copper, and magnesium—are systematically varied to tailor mechanical properties and aging response. It is noteworthy that certain zinc alloys, particularly those with elevated copper content, are susceptible to intergranular corrosion and consequent dimensional growth over extended periods. As such, alloy selection represents a critical material specification decision that directly influences long-term stability.

The die casting tooling itself is subjected to extreme cyclic thermal and mechanical loading. Predominant wear mechanisms include thermal fatigue cracking (heat checking), erosion caused by the abrasive flow of molten metal, and soldering—the adhesion of zinc to the die surface. Tool life is managed through a combination of optimal die material selection, surface engineering such as nitriding or physical vapor deposition (PVD) coatings, and disciplined preventive maintenance schedules. Ultimately, the dimensional accuracy and repeatability of the final casting are governed by the precision of the die manufacturing, the consistency of the process parameters, and the specific shrinkage characteristics inherent to the chosen zinc alloy grade.

Advantage

Parameter Category	Parameter	Typical Range / Value
Material	Alloy Types	Zamak 2, Zamak 3, Zamak 5, Zamak 7, ZA-8, ZA-12, ZA-27, ACuZinc
	Melting Temperature Range	380°C – 440°C (716°F – 824°F)
	Pouring Temperature	410°C – 460°C (770°F – 860°F)
Machine	Machine Type	Hot-chamber (predominant), Cold-chamber (for larger parts)
	Clamping Force	100 – 4,000+ tons
	Injection Pressure	10 – 100+ MPa (1,450 – 14,500+ psi)
	Shot Speed (plunger)	0.5 – 5.0 m/s
Die / Tooling	Die Material	H13, H11 tool steel (hardened to 45–50 HRC)
	Cavity Surface Finish	0.4 – 1.6 µm Ra (as-polished or coated)
	Die Operating Temperature	150°C – 250°C (300°F – 480°F)
	Core/Cavity Shrinkage Allowance	0.6% – 0.8% (depending on alloy)
Process	Fill Time (cavity filling)	5 – 100 milliseconds (depending on wall thickness)
	Intensification Pressure (dwell)	50 – 150% of initial injection pressure
	Cycle Time (per shot)	5 – 30 seconds (alloy- and size-dependent)
	Shot Weight Capacity	0.1 kg – 25 kg (per casting, typical range)
Casting Geometry	Minimum Wall Thickness	0.5 – 1.0 mm (achievable with high fluidity alloys)
	Maximum Wall Thickness	Up to 8 – 12 mm (thicker sections may require gating optimization)
	Dimensional Tolerance (linear)	±0.05 mm for first 25 mm; ±0.002 mm/mm thereafter (typical)
	Draft Angle (internal)	0.5° – 2.0° (depending on feature depth)
	Draft Angle (external)	0.5° – 1.5°
Quality / Defect Control	Porosity Level (typical)	< 2% – 5% by volume (without vacuum)
	Surface Roughness (as-cast)	0.8 – 3.2 µm Ra
	Vacuum Assistance	Optional (reduces gas porosity to < 1%)
	Flash Thickness (parting line)	0.05 – 0.25 mm (after trimming)
Zinc die casting is a high-pressure metal casting process in which molten zinc alloy is forcibly injected into a precision-engineered steel mold,known as a die,under substantial pressure.The process

Applications of Zinc Die Casting

Zinc die casting is employed across a broad spectrum of industrial sectors, leveraging its ability to produce complex, high-precision components with excellent surface quality and dimensional stability. The process is particularly valued in applications where intricate geometries, thin walls, and fine details must be achieved in high-volume production runs.

1. Automotive Industry

Functional components: carburetor bodies, fuel injection housings, throttle bodies, brake system components, steering column housings, seat belt retractor mechanisms, sensor housings. Integrated features: oil passages, threaded holes, mounting bosses (reduce secondary machining). Interior applications: door handles, lock mechanisms, instrument panel brackets (requiring aesthetic finish and dimensional consistency)

2. Electronics and Telecommunications

Products: shielding enclosures, connector housings, heat sinks, chassis frames for electronic devices.Inherent EMI shielding capability protects sensitive circuits in computers, servers, communication equipment, and consumer electronics. Thin-walled sections with precise tolerances enable compact, lightweight designs for portable devices.Excellent thermal conductivity facilitates heat dissipation from power electronics and LED lighting

3. Industrial Machinery and Fluid Power

Products: pumps, valves, regulators, pneumatic fittings, hydraulic manifold blocks, gear housings.Smooth internal passages and pressure-tight integrity for fluid handling applications.Dimensional stability ensures reliable sealing under varying pressure and temperature conditions

4. Hardware, Locks, and Security

Products: lock bodies, deadbolts, handles, hinges, cam locks, padlocks, architectural hardware.Inherently smooth as-cast surface supports decorative plating (chrome, nickel, brass).Complex undercuts, lettering, and logos cast directly into parts (eliminates marking/engraving)

5. Medical and Dental Equipment

Products: surgical instrument handles, diagnostic device housings, dental handpiece components, portable medical monitor frames.Sterile, corrosion-resistant surfaces with intricate contours meet hygiene and ergonomic demands

6. Consumer Goods and Appliances

Products: power tool housings, kitchen appliance components, zipper sliders, belt buckles, eyeglass frame parts, toy mechanisms.Excellent wear resistance and long service life under repetitive mechanical cycling

7. Niche Applications

Aerospace: non-critical interior components

Marine hardware: corrosion-resistant parts

Firearm components: trigger guards, sight mounts

Common Requirements Across All Sectors

Complex geometry, tight tolerances, high production volumes, consistent quality

Alloy selection versatility tailors mechanical properties (hardness, ductility, creep resistance)

Process supports both functional parts (structural integrity) and decorative parts (cosmetic appearance)

Advantages of Zinc Die Casting

Zinc die casting offers a distinct combination of technical, economic, and manufacturing advantages that position it as a preferred production method for a wide range of components.

1. Exceptional Dimensional Accuracy and Stability

Tolerances as tight as ±0.05 mm for the first 25 mm, ±0.002 mm per additional millimeter

Often eliminates post-cast machining; parts usable as-cast

Minimal long-term dimensional changes when properly alloyed and processed

2. High Production Efficiency

Hot-chamber process enables cycle times of 5–30 seconds per shot

High-volume output: hundreds of thousands of parts per month per machine

Automation of ladling, injection, ejection, and trimming reduces labor costs

3. Outstanding Fluidity and Castability

Fills thin-walled sections down to 0.5 mm or less

Reproduces fine threads, sharp corners, intricate logos, and undercuts

Narrow freezing range promotes directional solidification, reducing shrinkage porosity

4. Superior Surface Finish and Plating Compatibility

As-cast surface roughness: 0.8–3.2 µm Ra

Readily accepts electroplated finishes (chrome, nickel, brass, etc.) and powder coating

Thermal expansion matches plating materials, ensuring strong adhesion

5. High Strength and Ductility

Tensile strength: 250–450 MPa; elongation: 3%–10% (Zamak alloys)

Excellent toughness, impact resistance, wear resistance, and bearing properties

6. Excellent EMI Shielding

Superior shielding against electric and magnetic fields for electronic applications

Critical for regulatory compliance in consumer and automotive electronics

7. Extended Tool Life

Low melting temperature (390–440°C) reduces thermal fatigue and erosion

Tool life: several hundred thousand to over one million shots

8. Material Efficiency and Sustainability

Strength-to-weight ratio enables lightweight designs

Scrap (runners, overflow) remelted and reused; material utilization >95%

9. Design Flexibility

Integrates bosses, ribs, and mounting points into single casting

Reduces part count, assembly complexity, inventory, and system cost

10. Long-Term Reliability

Natural corrosion resistance forms protective patina

Maintains performance over decades in automotive, architectural, and industrial applications

FAQ

Q1: What is the minimum order quantity (MOQ)?

A1: There is no fixed MOQ. We welcome trial orders and prototype quantities before mass production. Tooling costs are amortized based on your order volume.

Q2: What information do I need to provide to get a quotation?

A2: Please send us 2D or 3D drawings (including material, dimensions, tolerances, surface treatment, etc.), quantity, application, or physical samples. The more details you provide, the more accurate our quotation will be. We will respond with a formal price offer within 24 hours.

Q3: How long does mass production take?

A3: Lead time varies depending on part dimensions, technical complexity, and order quantity. Typically, mass production takes 25–35 working days. Prototype and small-batch orders can be completed in 10–20 working days.

Q4: What is the standard order processing procedure?

A4: The process is as follows: quotation → deposit payment → tooling preparation → sample approval → mass production → final inspection → balance payment & shipping. After receiving your deposit, production will be arranged immediately.

Q5: What payment terms do you accept?

A5: We accept T/T, L/C, PayPal, and Western Union. T/T with 30%–50% deposit is the most common option. Customized payment terms are available for long-term partners.

Q6: How can I track my order status without visiting your company?

A6: We provide a detailed production schedule upon order confirmation, plus weekly progress reports with digital photos and videos showing the machining and inspection progress. Your dedicated account manager is available for real-time updates.

Q7: Can you assist with die design and tooling development?

A7: Yes, we offer full in-house tooling design and manufacturing. Our engineering team uses advanced simulation software to optimize gating and cooling systems for high-quality castings and extended die life.

Q8: Do you provide samples before mass production?

A8: Yes. Sample parts are produced and sent for your approval before mass production. Samples are typically delivered within 10–15 working days after die completion, along with a dimensional inspection report and material certificate.
