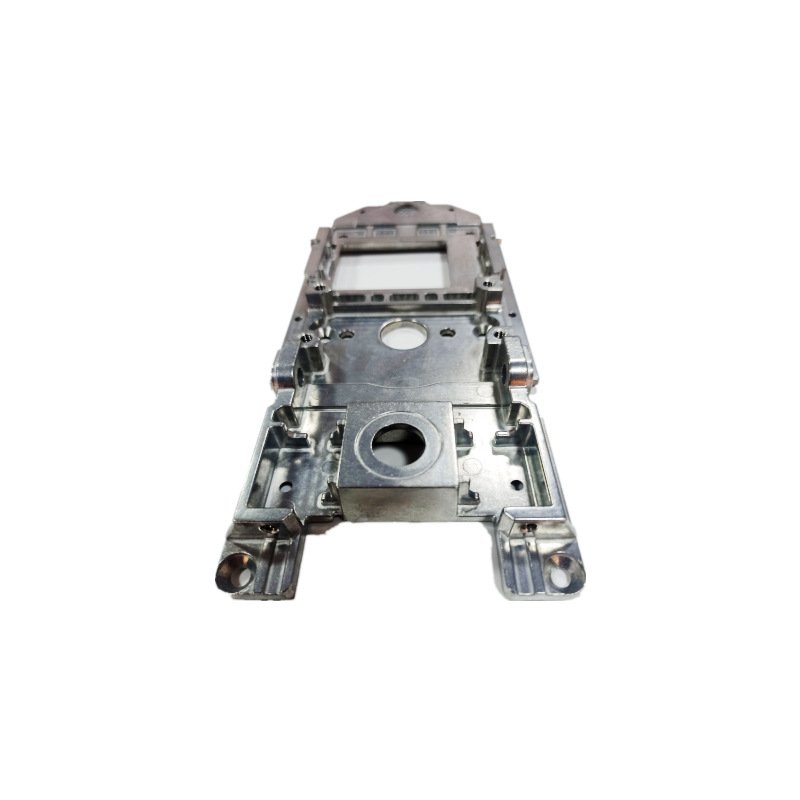

High-Precision Zinc Die Casting Components with Tight Dimensional Tolerances

Applications of Zinc Die Casting

Zinc die casting finds extensive utilization across diverse industrial domains, owing to its capacity to manufacture geometrically complex, high-accuracy components featuring superior surface quality and consistent dimensional attributes. The process is especially favored for applications demanding intricate shapes, minimal wall thicknesses, and fine feature reproduction within high-throughput production environments.

1. Automotive Sector

This sector represents the largest consumer of zinc die castings, where the process delivers functional powertrain and chassis components alongside aesthetic interior trim parts. The ability to integrate multiple features—such as oil passages, threaded holes, and mounting bosses—into a single casting substantially reduces downstream machining and assembly operations.Functional assemblies: carburetor bodies, fuel injection housings, throttle bodies, braking system elements, steering column enclosures, seatbelt retractor units, and sensor casings. Value-added integration: oil galleries, threaded apertures, and mounting bosses (minimizing subsequent machining). Interior fittings: door handles, latching mechanisms, and instrument panel supports (requiring cosmetic surfaces and dimensional uniformity)

2. Electronics and Telecommunications

In the electronics arena, zinc die casting addresses two critical requirements simultaneously: electromagnetic compatibility and thermal management. The inherent EMI shielding properties of zinc alloys protect sensitive circuitry from interference, while the material's thermal conductivity efficiently dissipates heat from power-dense components. Thin-wall casting capabilities further enable the miniaturization demanded by modern portable electronics. Typical outputs: EMI shielding cans, connector shells, thermal spreaders, and equipment chassis. Intrinsic electromagnetic interference attenuation safeguards delicate circuitry in computing, server, networking, and consumer electronic devices. Thin-wall capabilities with stringent tolerances facilitate space-efficient, lightweight packaging for handheld products. Elevated thermal conductivity supports heat removal from power modules and LED arrays

3. Industrial Machinery and Fluid Power Systems

For industrial applications, the primary value proposition of zinc die casting lies in its ability to produce pressure-tight components with smooth internal flow passages. The dimensional stability of zinc castings ensures reliable sealing performance even when subjected to fluctuating pressures and temperatures, making the process ideal for fluid handling and power transmission equipment. Representative items: pump casings, valve bodies, pressure regulators, pneumatic couplers, hydraulic manifold blocks, and transmission housings. Clean internal flow paths and leak-proof construction essential for media-handling equipment. Dimensional permanence guarantees dependable seal integrity across fluctuating pressure and temperature profiles

4. Hardware, Locks, and Security Devices

The hardware sector exploits zinc die casting for its superior surface quality, which serves as an excellent foundation for decorative electroplated finishes. The process economically produces high-volume security components with intricate contours and integrated branding elements, eliminating the need for separate marking or engraving procedures.

5. Medical and Dental Instrumentation

Medical applications demand materials and processes that yield non-porous, corrosion-resistant surfaces capable of withstanding rigorous sterilization protocols. Zinc die casting meets these requirements while offering the design freedom to produce ergonomic handles and device housings with complex contours that enhance practitioner comfort and procedural efficiency.

6. Consumer Durables and Household Appliances

In the consumer goods segment, zinc die casting is valued for its durability under repetitive mechanical cycling. Components such as power tool housings and zipper sliders benefit from the material's wear resistance and impact toughness, ensuring long operational lifetimes even in demanding daily-use scenarios.

7. Specialized and Niche Implementations

Beyond mainstream applications, zinc die casting serves specialized sectors where specific property combinations are required—corrosion resistance for marine environments, lightweight construction for aerospace interiors, and impact resistance for firearm components. These niche applications demonstrate the material's adaptability to varied performance requirements.

Across all these sectors, common demands emerge: intricate geometry, narrow tolerance bands, substantial production volumes, and repeatable quality metrics. Alloy formulation flexibility permits adjustment of mechanical responses—including strength, formability, and creep resistance—to suit specific application needs. The process accommodates both load-bearing functional elements and aesthetically oriented decorative components, demonstrating its comprehensive versatility.

Advantages of Zinc Die Casting

Zinc Die Casting: Ten Compelling Advantages That Define a Premier Manufacturing Process

Zinc die casting offers a distinct combination of technical, economic, and manufacturing advantages that position it as a preferred production method for a wide range of components. The following ten advantages collectively demonstrate why this process remains the benchmark for high-volume production of precision metal parts.

1. Exceptional Dimensional Accuracy and Stability

Precision that eliminates secondary operations. Zinc die casting delivers tolerances as tight as ±0.05 mm for the first 25 mm, with progressive tolerances of ±0.002 mm per additional millimeter. This level of accuracy often renders post-cast machining unnecessary, allowing components to be deployed directly in the as-cast condition. Furthermore, when properly alloyed and processed, zinc exhibits minimal long-term dimensional drift, ensuring that parts maintain their designed fit, alignment, and functional clearances throughout their entire service life—a critical attribute for assemblies requiring consistent performance over years or decades.

2. High Production Efficiency

Speed that drives cost-effectiveness. The hot-chamber die casting process, predominantly employed for zinc, enables remarkably brief cycle times ranging from 5 to 30 seconds per shot, contingent upon part size and complexity. This rapid cycling translates into extraordinary throughput, with a single machine capable of producing hundreds of thousands of components per month. Automated operations encompassing ladling, injection, ejection, and trimming further diminish labor requirements and enhance overall manufacturing productivity, making the process exceptionally well-suited for large-scale production commitments.

3. Outstanding Fluidity and Castability

Unrivaled capability for intricate geometries. Zinc alloys possess superior molten flow characteristics that permit the filling of thin-walled sections down to 0.5 mm or even less, while simultaneously reproducing the finest details with remarkable fidelity. Features that challenge or defeat alternative manufacturing methods—including fine-pitch threads, sharp external corners, intricate brand logos, and complex undercuts—are routinely cast directly into the part. The narrow freezing range of zinc alloys further promotes directional solidification, effectively reducing shrinkage porosity and ensuring sound internal structures.

4. Superior Surface Finish and Plating Compatibility

A flawless foundation for decorative and protective coatings. Zinc die castings exhibit as-cast surface roughness values between 0.8 and 3.2 µm Ra, providing an exceptionally smooth substrate that requires minimal preparation for finishing operations. The material readily accepts a wide array of electroplated finishes—including chrome, nickel, brass, copper, and gold—as well as powder coating and liquid painting. Critically, the thermal expansion coefficient of zinc closely aligns with that of most plating materials, ensuring robust adhesion and resistance to flaking, blistering, or delamination under thermal cycling conditions.

5. High Strength and Ductility

Mechanical robustness for demanding applications. Zamak-series alloys, the most widely used family in zinc die casting, deliver ultimate tensile strengths ranging from 250 to 450 MPa, coupled with elongation values between 3% and 10%, depending on the specific alloy grade. This combination provides an optimal balance of strength and ductility, conferring excellent toughness and impact resistance that makes zinc castings suitable for both functional load-bearing components and structural applications. The material also demonstrates superior bearing properties and wear resistance, particularly in sliding contact scenarios.

FAQ

Q1: What payment terms do you accept?

A1: We accept T/T, L/C, PayPal, and Western Union. T/T with 30%–50% deposit is the most common option. Customized payment terms are available for long-term partners.

Q2: What information do I need to provide to get a quotation?

A2: Please send us 2D or 3D drawings (including material, dimensions, tolerances, surface treatment, etc.), quantity, application, or physical samples. The more details you provide, the more accurate our quotation will be. We will respond with a formal price offer within 24 hours.

Q3: How long does mass production take?

A3: Lead time varies depending on part dimensions, technical complexity, and order quantity. Typically, mass production takes 25–35 working days. Prototype and small-batch orders can be completed in 10–20 working days.

Q4: What is the standard order processing procedure?

A4: The process is as follows: quotation → deposit payment → tooling preparation → sample approval → mass production → final inspection → balance payment & shipping. After receiving your deposit, production will be arranged immediately.

Q5: What is the minimum order quantity (MOQ)?

A5: There is no fixed MOQ. We welcome trial orders and prototype quantities before mass production. Tooling costs are amortized based on your order volume.

Q6: How can I track my order status without visiting your company?

A6: We provide a detailed production schedule upon order confirmation, plus weekly progress reports with digital photos and videos showing the machining and inspection progress. Your dedicated account manager is available for real-time updates.

Q7: Do you provide samples before mass production?

A7: Yes. Sample parts are produced and sent for your approval before mass production. Samples are typically delivered within 10–15 working days after die completion, along with a dimensional inspection report and material certificate.
