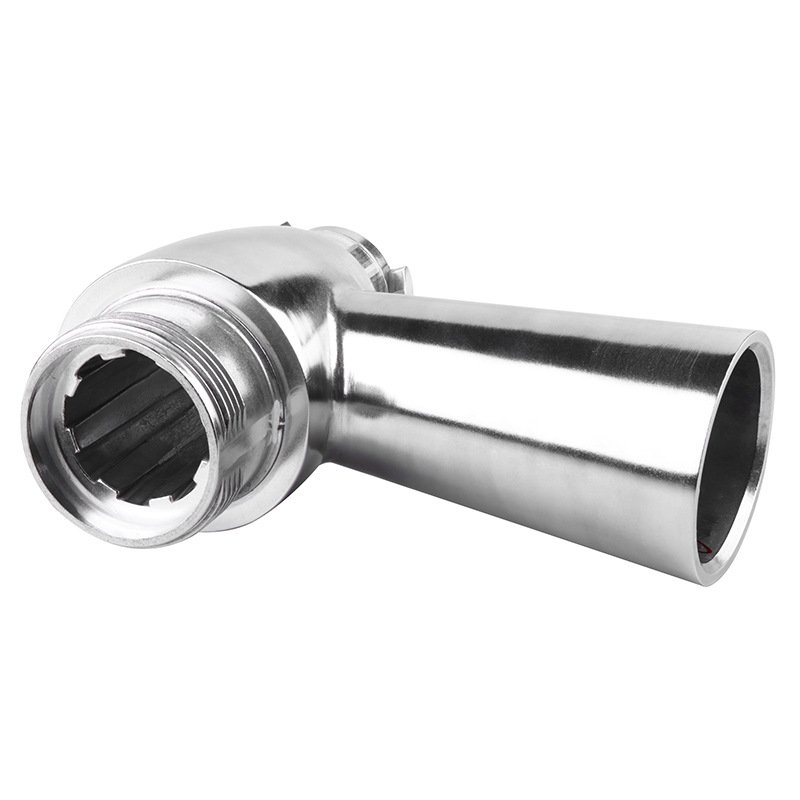

High-Quality Custom Zinc Die Casting with Superior Surface Finish Capabilities

Applications of Zinc Die Casting

Zinc die casting is employed across a broad spectrum of industrial sectors, leveraging its ability to produce complex, high-precision components with excellent surface quality and dimensional stability. The process is particularly valued in applications where intricate geometries, thin walls, and fine details must be achieved in high-volume production runs.

1. Automotive Sector

This sector represents the largest consumer of zinc die castings, where the process delivers functional powertrain and chassis components alongside aesthetic interior trim parts. The ability to integrate multiple features—such as oil passages, threaded holes, and mounting bosses—into a single casting substantially reduces downstream machining and assembly operations.Functional assemblies: carburetor bodies, fuel injection housings, throttle bodies, braking system elements, steering column enclosures, seatbelt retractor units, and sensor casings. Value-added integration: oil galleries, threaded apertures, and mounting bosses (minimizing subsequent machining). Interior fittings: door handles, latching mechanisms, and instrument panel supports (requiring cosmetic surfaces and dimensional uniformity)

2. Electronics and Telecommunications

In the electronics arena, zinc die casting addresses two critical requirements simultaneously: electromagnetic compatibility and thermal management. The inherent EMI shielding properties of zinc alloys protect sensitive circuitry from interference, while the material's thermal conductivity efficiently dissipates heat from power-dense components. Thin-wall casting capabilities further enable the miniaturization demanded by modern portable electronics. Typical outputs: EMI shielding cans, connector shells, thermal spreaders, and equipment chassis. Intrinsic electromagnetic interference attenuation safeguards delicate circuitry in computing, server, networking, and consumer electronic devices. Thin-wall capabilities with stringent tolerances facilitate space-efficient, lightweight packaging for handheld products. Elevated thermal conductivity supports heat removal from power modules and LED arrays.

3. Medical and Dental Instrumentation

Medical applications demand materials and processes that yield non-porous, corrosion-resistant surfaces capable of withstanding rigorous sterilization protocols. Zinc die casting meets these requirements while offering the design freedom to produce ergonomic handles and device housings with complex contours that enhance practitioner comfort and procedural efficiency.

4. Consumer Durables and Household Appliances

In the consumer goods segment, zinc die casting is valued for its durability under repetitive mechanical cycling. Components such as power tool housings and zipper sliders benefit from the material's wear resistance and impact toughness, ensuring long operational lifetimes even in demanding daily-use scenarios.

5. Specialized and Niche Implementations

Beyond mainstream applications, zinc die casting serves specialized sectors where specific property combinations are required—corrosion resistance for marine environments, lightweight construction for aerospace interiors, and impact resistance for firearm components. These niche applications demonstrate the material's adaptability to varied performance requirements.

6. Industrial Machinery and Fluid Power Systems

For industrial applications, the primary value proposition of zinc die casting lies in its ability to produce pressure-tight components with smooth internal flow passages. The dimensional stability of zinc castings ensures reliable sealing performance even when subjected to fluctuating pressures and temperatures, making the process ideal for fluid handling and power transmission equipment. Representative items: pump casings, valve bodies, pressure regulators, pneumatic couplers, hydraulic manifold blocks, and transmission housings. Clean internal flow paths and leak-proof construction essential for media-handling equipment. Dimensional permanence guarantees dependable seal integrity across fluctuating pressure and temperature profiles

7. Hardware, Locks, and Security Devices

The hardware sector exploits zinc die casting for its superior surface quality, which serves as an excellent foundation for decorative electroplated finishes. The process economically produces high-volume security components with intricate contours and integrated branding elements, eliminating the need for separate marking or engraving procedures.

Advantages of Zinc Die Casting

Zinc die casting offers a distinct combination of technical, economic, and manufacturing advantages that position it as a preferred production method for a wide range of components.

1. Excellent EMI Shielding Effectiveness

Inherent protection for sensitive electronics. Zinc alloys provide outstanding shielding against both electric and magnetic fields, significantly outperforming plastics with conductive coatings or metalized surfaces. This intrinsic property is critical for ensuring electromagnetic compatibility and meeting stringent regulatory requirements in consumer electronics, automotive control systems, telecommunications infrastructure, and medical devices. The shielding effectiveness remains consistent throughout the component's lifetime, unaffected by surface wear or environmental degradation.

2. Extended Tool Life

Durability that reduces per-part tooling costs. The relatively moderate melting temperature of zinc alloys—ranging from 390°C to 440°C—substantially reduces thermal fatigue and erosive wear on die steel compared to higher-temperature casting processes such as aluminum or magnesium. This favorable thermal regime extends tool life to several hundred thousand, and in many cases over one million, shots before refurbishment or replacement becomes necessary. The resulting reduction in per-part tooling amortization significantly improves overall process economy.

3. Material Efficiency and Sustainability

Responsible resource utilization. Zinc die castings offer an excellent strength-to-weight ratio, enabling engineers to design lightweight components without compromising structural performance. The process generates minimal waste, as runners, overflows, and scrap material can be remelted and reintroduced into the production cycle within the same facility. Material utilization rates consistently exceed 95%, positioning zinc die casting as an environmentally responsible manufacturing choice that aligns with contemporary sustainability imperatives.

4. Design Flexibility

Integration that simplifies assemblies. The process enables the consolidation of multiple functions into a single casting through the incorporation of bosses, ribs, gussets, mounting points, and locating features directly into the part geometry. This integration capability substantially reduces overall part count, minimizes assembly complexity, lowers inventory requirements, and decreases total system cost. Engineers enjoy considerable design freedom to optimize component geometry for both functional performance and manufacturability.

5. Long-Term Reliability

Enduring performance across decades of servic. Zinc inherently resists corrosion through the formation of a stable, self-limiting patina that protects the underlying material in a wide range of environmental conditions. When appropriately alloyed and finished, zinc die castings maintain their mechanical properties, dimensional accuracy, and cosmetic appearance over extended service intervals. This proven reliability is evidenced by their extensive and sustained use in automotive, architectural, and industrial applications demanding decades of trouble-free operation.

FAQ

Q1: What is the minimum order quantity (MOQ)?

A1: There is no fixed MOQ. We welcome trial orders and prototype quantities before mass production. Tooling costs are amortized based on your order volume.

Q2: What information do I need to provide to get a quotation?

A2: Please send us 2D or 3D drawings (including material, dimensions, tolerances, surface treatment, etc.), quantity, application, or physical samples. The more details you provide, the more accurate our quotation will be. We will respond with a formal price offer within 24 hours.

Q3: How long does mass production take?

A3: Lead time varies depending on part dimensions, technical complexity, and order quantity. Typically, mass production takes 25–35 working days. Prototype and small-batch orders can be completed in 10–20 working days.

Q4: What is the standard order processing procedure?

A4: The process is as follows: quotation → deposit payment → tooling preparation → sample approval → mass production → final inspection → balance payment & shipping. After receiving your deposit, production will be arranged immediately.

Q5: What payment terms do you accept?

A5: We accept T/T, L/C, PayPal, and Western Union. T/T with 30%–50% deposit is the most common option. Customized payment terms are available for long-term partners.

Q6: How can I track my order status without visiting your company?

A6: We provide a detailed production schedule upon order confirmation, plus weekly progress reports with digital photos and videos showing the machining and inspection progress. Your dedicated account manager is available for real-time updates.

Q7: Can you assist with die design and tooling development?

A7: Yes, we offer full in-house tooling design and manufacturing. Our engineering team uses advanced simulation software to optimize gating and cooling systems for high-quality castings and extended die life.

Q8: Do you provide samples before mass production?

A8: Yes. Sample parts are produced and sent for your approval before mass production. Samples are typically delivered within 10–15 working days after die completion, along with a dimensional inspection report and material certificate.
