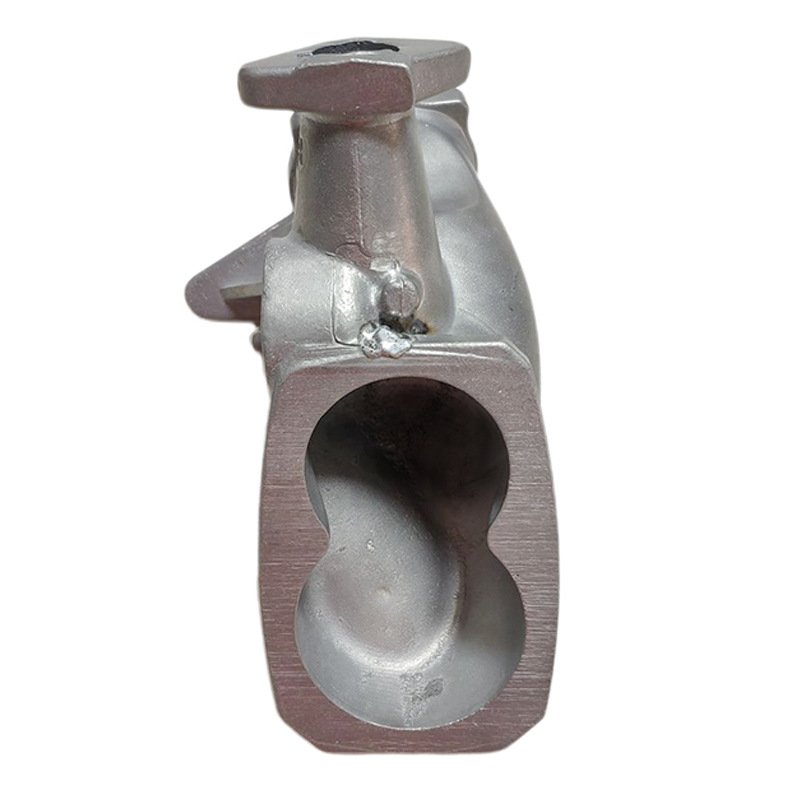

Factory Customized Gravity Die Casting for Industrial Hydraulic Systems 介绍

Application of Gravity Die Casting:

Gravity die casting delivers proven performance advantages across automotive, industrial, and electrical sectors through a combination of structural integrity, material versatility, and cost-effective medium-volume production. Achieving dimensional tolerances of CT 6–8 (ISO 8062), wall thicknesses from 3 mm, and cycle times of 2–15 minutes, the process produces near-net-shape components with excellent surface finish and minimal machining allowances. A356-T6 aluminum alloy serves as the workhorse material, offering ultimate tensile strength of 290–330 MPa, yield strength of 200–240 MPa, and elongation of 5–10%, while the semi-permanent mold variant enables complex internal passages via expendable sand cores.

Automotive: Structural Integrity and Lightweight Performance

The automotive sector exploits gravity die casting for its capacity to produce high-integrity structural and powertrain components that demand superior mechanical properties and pressure tightness. Cylinder heads, engine blocks, intake manifolds, and crankcases exemplify assemblies where coolant galleries, oil passages, and mounting interfaces are cast directly into the geometry. This integration eliminates separate core assembly and welding operations, reducing leak paths, minimizing weight, and enhancing thermal management. The low porosity of gravity castings—typically below 2%—ensures pressure-retaining integrity for fluid-carrying components, while the refined dendritic microstructure delivers fatigue resistance essential for cyclic-loaded suspension arms, steering knuckles, and control arms subjected to continuous road-induced vibration and impact loads.

Electric vehicle applications further leverage the process for battery housings, motor enclosures, and inverter cooling plates. These components benefit from the alloy's thermal conductivity and dimensional stability, maintaining critical clearances across operating temperature ranges. The full heat-treatability (T5/T6 temper) of gravity cast aluminum enables strength optimization without the blistering risks that limit high-pressure die castings, validating the process for safety-critical structural applications where failure is not an option. Automotive OEMs thus achieve lightweight, durable systems that reduce vehicle mass, improve fuel efficiency, and extend EV range—all at production economics suited to medium-to-high volume platforms.

Industrial: Pressure-Tight Integrity and Heavy-Duty Reliability

In fluid handling, power transmission, and heavy machinery applications, operational reliability is non-negotiable. Gravity die casting produces pressure-retaining components—hydraulic pump housings, valve bodies, compressor casings, gearbox enclosures, and pneumatic manifolds—with dense, porosity-free microstructures that maintain integrity under sustained pressures up to 300 bar. The laminar, gravity-driven filling eliminates the gas entrapment inherent to high-pressure methods, yielding castings that exhibit consistent pressure tightness without impregnation or sealing treatments.

The fine grain structure achieved through controlled solidification delivers superior wear resistance and dimensional stability, ensuring sealing surfaces—O-ring grooves, flange faces, threaded ports—preserve profiles through thermal cycling from -40 °C to +180 °C and continuous mechanical loading. Intricate internal flow geometries are cast directly, minimizing drilling and cross-boring while eliminating potential leakage paths and pressure drop zones. Smooth bore finishes reduce cavitation erosion, extending maintenance intervals for pumps and compressors. Gravity die castings exhibit consistent interchangeability without selective fitting, simplifying assembly and field replacement. The process delivers the fatigue strength required for transmission housings combined with corrosion resistance for aggressive hydraulic media, ensuring reliable operation in demanding industrial environments—from factory floors to offshore platforms and mining equipment.

Electrical & Electronics: Thermal Management and Shielding Solutions

The electrical and electronics sector increasingly adopts gravity die casting for its ability to produce components combining thermal conductivity, electromagnetic shielding, and precise geometric definition. Inverter housings, power module enclosures, rectifier cooling plates, and motor frames benefit from the alloy's high thermal diffusivity, effectively dissipating heat from power semiconductors and reducing junction temperatures for extended device life. The near-net-shape capability permits integration of cooling fins, mounting brackets, and connector ports in a single casting, reducing assembly complexity and bill-of-materials cost.

For high-voltage applications, gravity die castings provide effective electromagnetic interference (EMI) shielding through their continuous conductive path, outperforming plastic enclosures with secondary metallic coatings. The inherent low porosity ensures sealed enclosures meet IP67 and IP69K ingress protection standards, safeguarding sensitive electronics in automotive under-hood environments and outdoor industrial installations. Complex geometries with varying wall sections are cast without hot cracking due to the controlled solidification rates afforded by metallic die thermal management. Electronics OEMs thus achieve robust, thermally efficient, and electromagnetically compliant enclosures that support the escalating power density requirements of next-generation electric drivetrains, renewable energy converters, and industrial automation systems.

Advantages of Gravity Die Casting

Gravity die casting offers a compelling combination of metallurgical quality, dimensional precision, and economic efficiency that distinguishes it from alternative casting processes. Its unique balance of capabilities makes it the preferred choice for engineers and manufacturers seeking high-integrity components without the compromises imposed by faster but less sound production methods.

Superior Metallurgical Quality

The foremost advantage of gravity die casting lies in its exceptional metallurgical integrity. Unlike high-pressure die casting, where turbulent injection entraps air and gases within the molten metal, gravity die casting employs a slow, laminar filling regime driven solely by gravitational force. This quiescent flow minimizes oxide film entrainment and gas entrapment, yielding castings with porosity levels consistently below 2% — a fraction of the 4–8% typical of high-pressure counterparts. The result is a dense, sound microstructure that delivers superior pressure tightness, enabling components to withstand hydraulic and pneumatic pressures up to 300 bar without leakage or impregnation treatments.

The permanent metal mold, with its high thermal diffusivity, ensures rapid and controlled solidification. This produces a refined dendritic structure with fine secondary dendrite arm spacing, directly translating to enhanced mechanical properties — higher tensile strength, improved yield strength, and superior fatigue resistance. Unlike high-pressure die castings, which are limited in heat treatment due to blistering risks, gravity castings are fully amenable to T5 and T6 tempers. Solution treatment and artificial aging can elevate tensile strengths of aluminum alloys such as A356 to 330 MPa, unlocking performance levels that rival forged components at a fraction of the cost.

Dimensional Precision and Near-Net-Shape Capability

Gravity die casting achieves dimensional tolerances of CT 6–8 per ISO 8062, typically ±0.25 mm per 25 mm, with surface finishes of Ra 5–15 µm as-cast. This precision significantly reduces or eliminates the need for extensive post-casting machining, lowering production costs and shortening delivery lead times. The reusable metal die maintains its geometry across tens of thousands of cycles, ensuring exceptional repeatability from part to part and batch to batch. Components exhibit consistent interchangeability without selective fitting, simplifying assembly operations and reducing quality control burdens.

The process accommodates both simple and complex geometries, with the semi-permanent mold variant incorporating expendable sand cores to create intricate internal passages — coolant galleries, oil channels, air-flow paths — that would be impossible with retractable metallic cores alone. This design flexibility allows engineers to consolidate multiple components into single castings, eliminating welded joints, fasteners, and assembly interfaces that represent potential failure points.

Economic Efficiency for Medium-Volume Production

Gravity die casting occupies an optimal cost-performance position for production volumes ranging from 2,000 to 100,000 units annually. The permanent tooling, while representing a higher initial investment than sand casting patterns, delivers unit costs that decrease significantly over production runs. Tooling life typically extends from 50,000 to 150,000 shots, providing exceptional return on investment for sustained manufacturing programs.

The near-net-shape capability minimizes material waste and reduces machining time, while the process's lower energy consumption — compared to high-pressure alternatives — contributes to reduced operational costs. Scrap rates of 2–5% are readily achievable with proper process control, further enhancing yield and cost-effectiveness.

Versatility Across Alloy Systems

Gravity die casting accommodates a broad spectrum of non-ferrous alloys, offering design engineers material choices tailored to specific application requirements. Aluminum-silicon-magnesium grades (A356, A357) provide an optimal balance of castability, strength, and corrosion resistance. Aluminum-copper alloys deliver elevated-temperature performance for demanding powertrain applications. Magnesium alloys enable extreme lightweighting for aerospace and automotive structures, while zinc and copper-based alloys serve specialized wear and conductivity applications.

Process Reliability and Quality Assurance

Modern gravity die casting operations are supported by computational fluid dynamics and solidification simulation, enabling virtual optimization of gating and riser systems before physical tooling is committed. Real-time monitoring of melt temperature, die temperature, and cycle parameters ensures statistical process control and batch-to-batch consistency. Rigorous non-destructive testing — radiography, ultrasonic inspection, dye penetrant — provides verification of internal soundness, giving customers confidence in every delivered component.

FAQ

Q1: What information do I need to provide to get a quotation?

A1: Please send us 2D or 3D drawings (including material, dimensions, tolerances, surface treatment, etc.), quantity, application, or physical samples. The more details you provide, the more accurate our quotation will be. We will respond with a formal price offer within 24 hours.

Q2: How long does mass production take?

A2: Production lead time depends on part size, design complexity, and order volume. In general:

Mass production: 25–35 working days. Prototype or small-batch orders: 10–20 working days

Q3: What is the minimum order quantity (MOQ)?

A3: There is no fixed MOQ. We welcome trial orders and prototype quantities before mass production. Tooling costs are amortized based on your order volume.

Q4: Can gravity die castings be heat treated?

A4: Yes. Unlike high-pressure die castings, which often blister during solution treatment due to trapped gases, gravity castings are fully heat-treatable. T5 and T6 tempers are commonly applied to enhance mechanical properties.

Q5: What payment terms do you accept?

A5: We accept T/T, L/C, PayPal, and Western Union. T/T with 30%–50% deposit is the most common option. Customized payment terms are available for long-term partners.
