Custom Investment Casting Services | Precision Silica Sol Steel Casting

For intricate steel components where dimensional exactness and pristine cosmetics are non-negotiable, Compass provides world-class Silica Sol Investment Casting (Ceramic Shell Process). Operating a modern, high-density lost wax foundry, we transition raw alloy blueprints into near-net-shape components that minimize or completely eliminate the need for costly extensive machining.

Quick Technical Matrix Summary

1.Dimensional Tolerance Standard: ISO 8062-3 DCT4 - DCT6 (Achieving as-cast accuracy from ±0.05mm to ±0.2mm).

2.Dimensional Precision via Secondary CNC Processing: Down to ±0.005mm using in-house multi-axis machining centers.

3.Surface Roughness Capability: Standard as-cast profile of Ra 1.6–3.2μm (Satin/Mirror polishing available).

4.Volumetric Component Envelopes: Supporting geometries up to 500mm × 500mm × 500mm.

5.Production Weight Scale: Ranging from micro-castings of 0.1kg up to robust structural parts of 50kg.

6.Primary Alloy Specializations: Stainless Steel (304, 316, 316L, 17-4 PH, Duplex Steel), Carbon Steel, Heat-Resistant Alloys, and Custom Low-Alloy Steels.

From Blueprint to Port: Our Integrated Production Blueprint

Unlike traditional component foundries, we structure our investment casting ecosystem around a zero-defect, full-lifecycle manufacturing pipeline tailored specifically for international B2B logistics.

Phase 1: Predictive Cast Engineering (DFM)

Every STEP or IGES drawing uploaded to our portal undergoes digital solidification simulation. Our metallurgical engineers assess thermal performance and mold flow velocity to eliminate internal hot spots, gas entrapment, or micro-porosity before we inject the first wax pattern.

Phase 2: High-Density Shell Matrixing

By utilizing premium-grade silica sol binders rather than commercial water glass, our ceramic layers achieve supreme thermal stability during high-temperature metal pouring. This chemical purity guarantees zero carbon depletion on the casting skin, ensuring unmatched grain refinement and mechanical tensile strength.

Phase 3: Advanced Metallurgical & NDT Verification

Operating an IATF 16949 registered facility, we run continuous spectral verification on every molten batch. Critical dimensions are validated using automated CMM workflows. For high-pressure fluid components, we execute X-Ray non-destructive testing (NDT), Magnetic Particle Inspection (MPI), and 100% Hydrostatic Air Leak Tests to guarantee absolute structural soundness.

Phase 4: Long-Transit Surface Stabilization & Logistics

To counter the harsh saline environments of cross-border ocean shipping, high-precision machined faces are treated with specialized rust inhibitors. Finished orders are nested within custom anti-static foam shock trays, sealed in VCI barrier bags, and packed into heavy-duty, reinforced export crates. We handle all international custom entries, offering seamless DDP delivery direct to your assembly line.

Technical Inquiry Forum: Investment Casting FAQ

Q1: How does Compass Hardware verify that the material chemistry meets our exact blueprint specifications?

Every production run is tracked via unique heat numbers. Before pouring, our engineering lab utilizes optical emission spectrometers to audit the precise chemical percentages of the molten alloy. A certified Material Test Report (MTR) matching ASTM, DIN, or JIS standards is included digitally and physically with every product shipment.

Q2: What are the typical application environments for your silica sol steel castings?

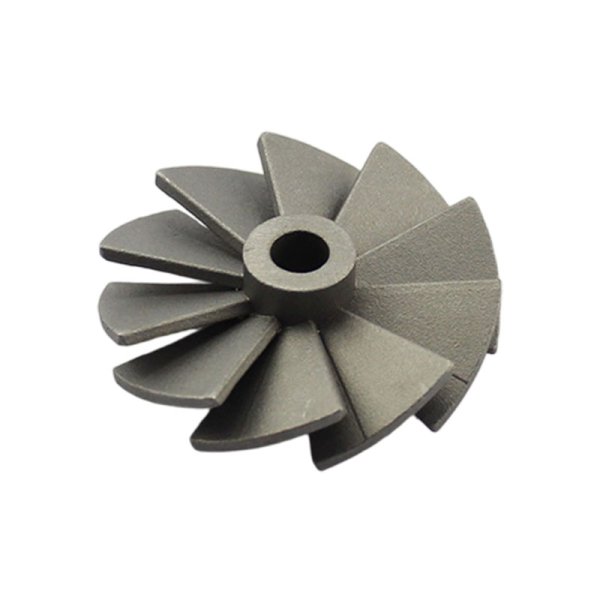

Due to their exceptional corrosion resistance and complex internal coring capabilities, our castings are deployed in high-stress sectors globally. Key applications include marine deck hardware, heavy-duty industrial pump impellers, architectural structural glass clamps, petrochemical valve bodies, and high-durability food processing brackets.

Q3: We have an existing part made via sand casting. Can it be upgraded to investment casting?

Yes. Sand castings often suffer from rough surface textures and wide dimensional variations, leading to excessive machining costs. By switching to our silica sol process, you get a smoother finish (Ra 1.6-3.2μm) and tight tolerances. This often eliminates secondary machining completely for non-critical faces, lowering your overall unit cost.

Q4: What is your policy regarding mold tooling ownership and lifetime maintenance?

The mold tooling tooling fee is a one-time investment paid by the client, and the physical mold remains your exclusive intellectual property. Compass Hardware assumes full financial responsibility for the storage, cleaning, and routine preventive maintenance of your molds. If a mold wears out during our cooperation, we replicate the tool at our own expense.

Q5: What is the standard timeline required to receive first-article samples?

Upon finalizing engineering review and receipt of order, our in-house toolmaking shop requires approximately 14 to 21 days to cut the high-precision wax injection dies. Following mold completion, initial prototype castings are poured, processed, fully inspected via CMM, and dispatched to your facility for physical validation within 7 days.
